China Face mask making machine manufacturer

square bottom plastic bag making machine

Product Details:
Place of Origin: China
Brand Name: Xiaohai
Model Number: JR-900
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden case/Seaworthy package
Delivery Time: 20 days
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Supply Ability: 20 Sets per month
Contact Now

Product Description

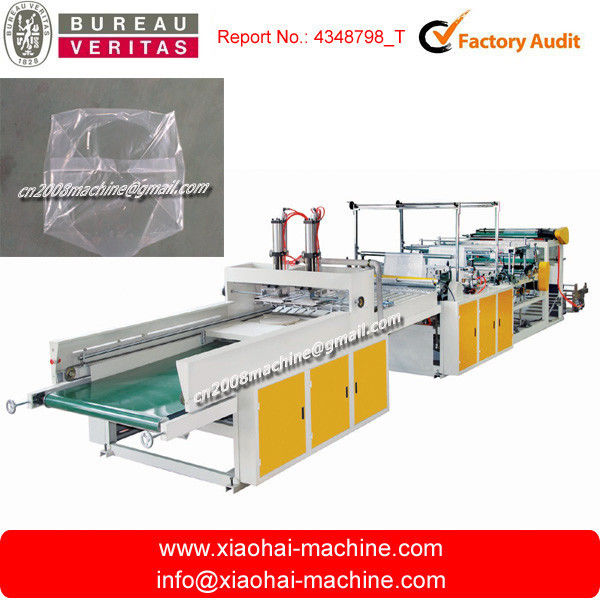

square bottom plastic bag making machine



Features:



1. The main motor is controlled by PANASONIC frequency inverter.

2. There are SCM, LCD display in the machine, it (the machine) can automatic to count, alert, stop and then start, when the set number is arrival.

3. Input is controlled by servo motor (1.5kw).

4. Output is controlled by infrared photoelectric to feed.

5. Color bags is tracked adopt photoelectric.

6. Temperature controller (0-500°C)

7. Static eliminator with 2static bars.

8. Cutting knife way as the scissors type.

9. Ironing knife size is according to customers’ special requirements.





Specification:



Model

JR-900

Film

LDPE   HDPE  etc

Bag making Width (mm)

60-900mm

Bag making length (mm)

10-1800mm

Film thickness (mm)

0.015-0.3mm

Bag Output(m/min)

120m/min

Main Power (kw)

1.5kw

Total Power

8kw

Power supply

50HZ220V+10%-15

Weight (kg)

1500kg

Overall Dimensions (L×W×H)(mm)

8000×1500×1800
