Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Xiaohai |
Model Number: | JR-900 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Packaging Details: | Wooden case/Seaworthy package |
Delivery Time: | 20 days |
Payment Terms: | 30% downpayment and pay the balance before shipment afer test the machine in our factory. |
Supply Ability: | 20 Sets per month |
Product Description

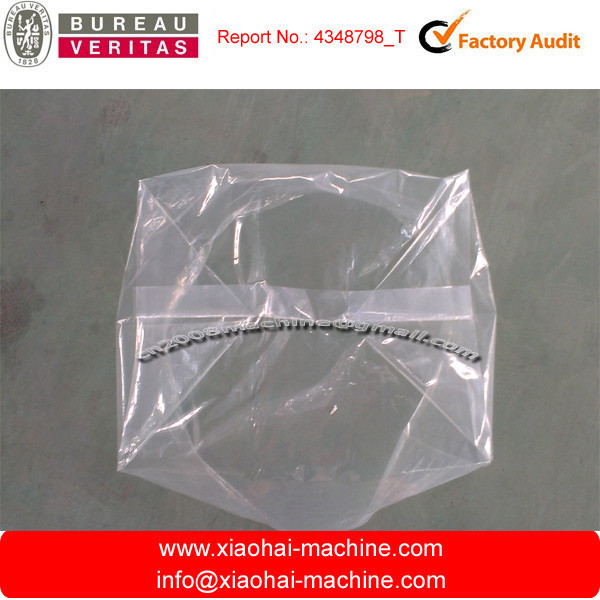

rectangle bag making machine
Features:
1. The main motor is controlled by PANASONIC frequency inverter.
2. There are SCM, LCD display in the machine, it (the machine) can automatic to count, alert, stop and then start, when the set number is arrival.
3. Input is controlled by servo motor (1.5kw).
4. Output is controlled by infrared photoelectric to feed.
5. Color bags is tracked adopt photoelectric.
6. Temperature controller (0-500°C)
7. Static eliminator with 2static bars.
8. Cutting knife way as the scissors type.
9. Ironing knife size is according to customers’ special requirements.
Specification:
Model |
JR-900 |
Film |
LDPE HDPE etc |
Bag making Width (mm) |
60-900mm |
Bag making length (mm) |
10-1800mm |
Film thickness (mm) |
0.015-0.3mm |
Bag Output(m/min) |
120m/min |
Main Power (kw) |
1.5kw |
Total Power |
8kw |
Power supply |
50HZ220V+10%-15 |
Weight (kg) |
1500kg |
Overall Dimensions (L×W×H)(mm) |
8000×1500×1800 |
