kraft Paper Bubble Envelope Bag Making Machine

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Certification: CE ISO
Model Number: ZSD
Payment & Shipping Terms:
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Detail Information

Video Link: Https://youtu.be/ydH1Q9ZkhG4

Product Description

I: Introduction of machine

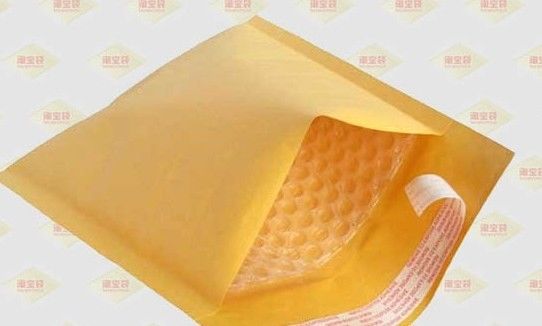

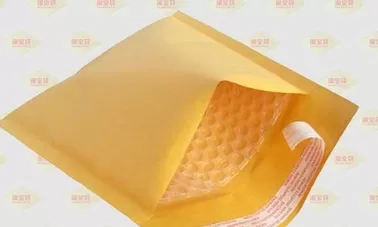

1. This machine is customized to make laminating Kraft and PE film bubble envelope in one line or double lines. And the machines are also suitable for making polythene film, aluminized film and pearl film bubble envelope.



2. Method of making bags: First, make the laminating Kraft or PE film and bubble film together by heated laminating roller. Next fold the laminated material by folding devices. And then, seal the material by hot electric cross sealer. Finally cut the material and a standard laminated envelope is made.

3. This machine is a specialized one with high quality and simple operation method .It adopts advanced motion control technology. And this machine is controlled by computer from unwinding to cutting. The envelopes made by this machine are good-looking and strong.



Ⅱ.Technical Parameters

1. Suitable material:



laminating Kraft roll



polythene film roll



bubble film roll



polythene and bubble film roll



aluminized and bubble film roll



pearl and bubble film roll



Mechanical executing speed:40~80 pieces/min



(the actual speed of making bags may differ according to the size of bags, thickness of materials and time of fusing.)



3. Max width of bag:



One line: 600mm (including the envelope flap)



Double line: 300mm (including the envelope flap)



4.Max length of bag:580mm



5.Max width of unwinding:



Kraft or polythene film:1150mm



Bubble film: 1100mm



6. Diameter of unwinding:



Kraft or polythene film: 800mm



Bubble film: 1300mm



7. Weight: 5100kg



8. Overall dimension: 16200mmX2300mmX2200mm (LXWXH)



9. Power required: 25Kw



10. Voltage: three-phase four-wire, AC 380V 50Hz



11. Steel Frame



III. Main Configuration:



1. COMPUTER CONTROL:



TRIO motion control system, HITIC 5.7 inches touch screen, YASKAWA servo motor. It has functions such as: auto-counting, alarming, stopping when a set of bags been made, and showing bag number, sealer and cutter stop at the highest position.



Main component:



Name



Brand



Quantity



Mechanical parts



Electrical cabinet



ZHENGDONG

3 set

Master panel



ZHENGDONG

2 pieces

Electrical parts



Motion control system



TRIO

1 piece

Touch screen



HITIC

1 piece

Alarm



ZHENGDONG

1 piece
