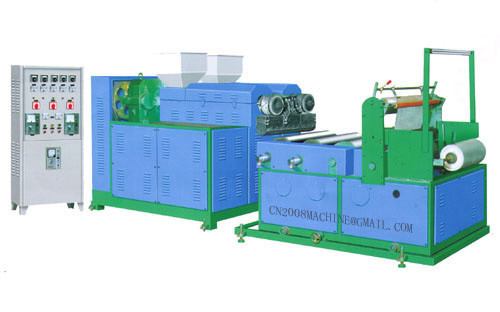

SFX2 Double Screw Co-Extrusion Film Casting Machine

Contact Now

Product Description

SFX2 Double Screw Co-Extrusion Film Casting Machine

Usage:
The machine is used for producing LDPE and LLDPE casting machine. The machine is equipped with double screws, two hoppers to provide different materials types, and cooling water system. The final production of the film consists of two faces, one side of film is adhesive and the other side is normal. It is widely used for packing architecture material and hardware parts etc.

Characteristics:

1. Screw and barrel are all made of 38CrMoAlA alloy, and treated by nitrogen. It has an advantage of corrosion resistance and endurance etc.

2. Cooling water system is to provide the best transparent effect ,which will increase the production of the extruder.

3. The rewinding is with friction type rewinding, and equipped with waste edge device to ensure the quality.

Specification:

Model No.

SFX2-50

Screw diameter

50mmx2

L/D

28:1

Width of T-die head

600mm

Width of finished products

200-500mm

Thickness of finished products

0.015-0.05mm

Structure of film layers

A/B

Max output

20-40kg/h

Main motor power

7.5kwx2

Total power

38.5kw

Machine weight

2800kg

Machine Dimension(LxWxH)

5600x2600x1800mm
