China Flexographic Printing machine manufacturer

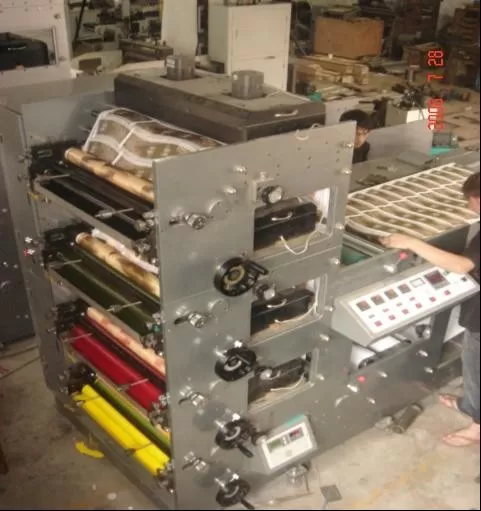

RY-650/850 4 5 6 COLORS PAPER CUP FLEXO PRINTING MACHINE

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Payment & Shipping Terms:
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Detail Information

High Light:

Paper cup production line

,

cup production line

Product Description

NDS-650B 5 COLORS FLEXO PRINTING MACHINE

1.Machine Units List:

a) 5 colorsprinting station

b) Laminating

c) Mitsubishi automatic tension controller for unwinding

d) Automatic tension controller for rewindingmade in China

e) 5 pcs of ceramic Alinox (line number on your request)

f) 5 set of plate roller ( 5pcs per set)

g) IR dryer for every printing station

h) With web guide

i) With corona treatment

2.Machine specification:

a) Max. printing speed: 50m/min

b) Printing color: 5 colors

c) Max paper roll width: 650mm (Can be up to 1200mm at extra cost)

d) Max printing width: 640mm

e) Max unwinding diameter: 1200mm

f) Max rewinding diameter: 1200mm

g) Printing girth: 175-320mm

h) Chromatography precision: ±0.15mm

3.Accessory list attached with machine package

a) Tool kit: one set of tool, 5 pcs of metal pieces and screws for installation

b) Ink scraper: 10 pcs

c) Operating manual: 1pcs (inside tool kit)

d) Air gun: 1pcs

e) Step belt: 450H/38.1mm, 1pcs

f) Step belt: 630H/38.1mm, 1pcs

g) Plate roller bearing sheath: 10pcs

h) Measurement: 3,200mm×1,200mm×3,100mm

i) Weight: 3600kg
