BGJ-350L 2-Line Hydraulic plasitc Cover Forming Machine

Product Details:
Place of Origin: China
Brand Name: Xiaohai
Model Number: BGJ-350L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Product Description

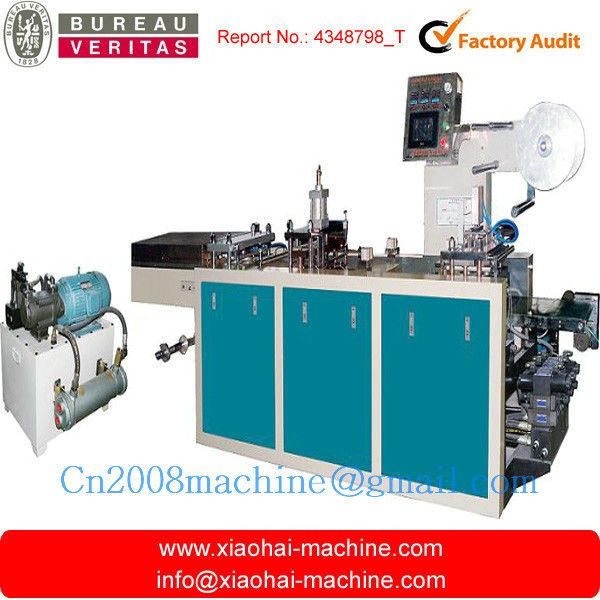

BGJ-350L 2-Line Hydraulic plasitc Cover Forming Machine




Usage:

It’s a new  type one  that combines advantages of several  types of main  forming machines and also brings to more improvement and innovation.

With easy operation, calm running, convenient maintenance and stable function.

It can produce PVC, PS, PET etc. all kinds of covers



Specification:



Working speed

20-45times/min

Adjustable scope of Travel

30-160mm

Max Forming Depth

50mm

Max Forming Area

220mm*320mm

Air-compressor

<0.2m3/min

Air Pressure

0.4-0.7MPa

Power

20Kw

Overall Dimension

4000*750*1700mm

Weight

1000kg
