Product Description

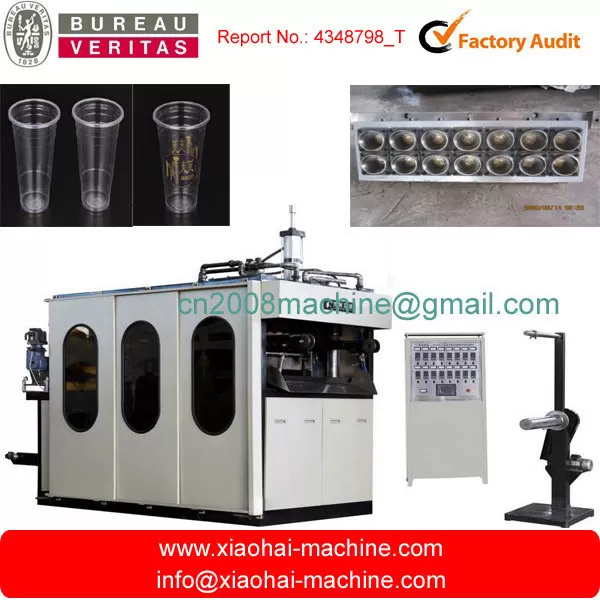

COMPLETE LINE FOR PP PLASTIC WATER CUP
Usage:
The machine is to make drinking cups, ice-cream cups, packing boxes and so on plastic products.
1. This machine is mainly used for producing disposable plastic vessels,such as tea cup,milk cup,jelly cup,instant noodles bowl and other plastic product,etc.It can produce such as PP,PE,PS and ABS,etc,
2.The machine can finish producing product at one time through sheet feeding, heating, stretching, forming and side-cutting, etc.This equipment adopts microcomputer control with semiautomatic and automatic functions
Specification:
Model No. | CK660-A | CK660-B | CK660-C | CK660-D |
Forming depth | 100mm | 120mm | 200mm | 220mm |
Forming area | 300x600mm | |||
Sheet width | 400-630mm | |||
Sheet thickness range | 0.25-2.5mm | |||
Forming pressure | 0.5-0.8Mpa | |||
Speed | 25-35 mould/min | |||
Rated heating power | 55kw/55kw/67kw/75kw | |||
Starting power | 7.5kw | |||
Water temperature | 30 | |||
Weight of machine | 4000kg/4500kg/4800kg/5200kg | |||
Machine Dimension(LxWxH) | A 3000x1800x2500mm |
Remark:
We also have wider width machine,if you want to make wider width film,please feel free to contact us,we will provide you details.thanks.
