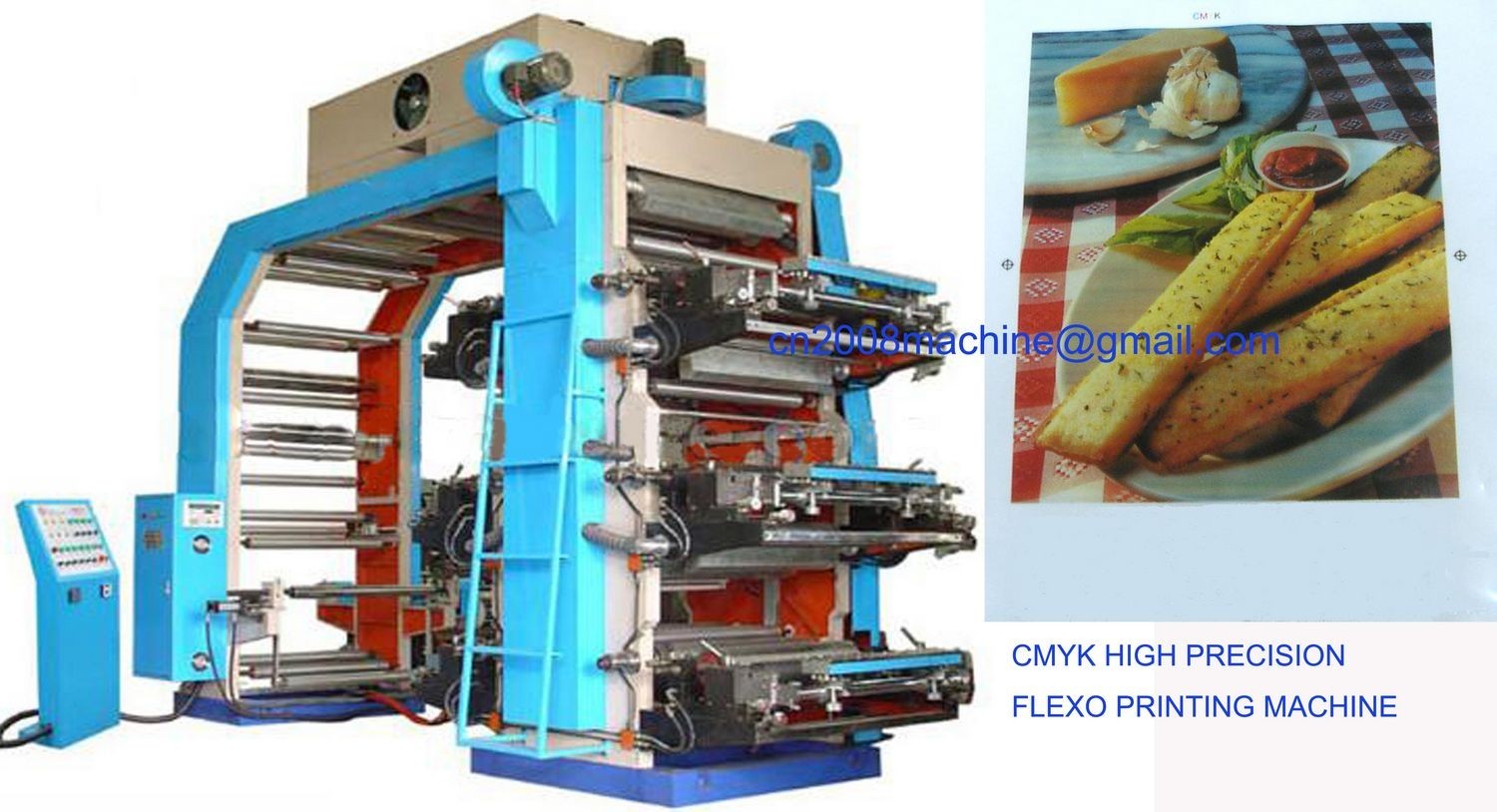

CMYK HIHG PRECISION FLEXO PRINTING MACHINE

Printing width Item

600mm

800mm

1000mm

1200mm

1400mm

1600mm

1800mm

2000mm

Printing color

PC:6+0;5+1;4+2;3+3

Printing length

191-914mm

Printing plate lifting system

Pneumatic/Hydraulic press control

Printing speed

80m/min

Anilox cylinder

Metal: 10DK-120DK(Germany)

Register precision

Longitude:±0.25mm  Transverse:±0.25mm

Rewinder/Unwinder Diameter

ø 600mm

Master motor

3.7KW

3.7KW

5.5KW

5.5KW

7.5KW

7.5KW

11KW

11KW

Unwinder motor

1.1 KW

1.5 KW

2.2 KW

3.0 KW

Rewinder motor

1.5 KW

2.2 KW

3.0 KW

3.7KW

Electrical header

14KW

16KW

20KW

22KW

24KW

26KW

28KW

30KW

Blower of header

1.5KW×2

1.1KW×3

1.1KW×3

1.1KW×3

1.5KW×3

1.5Kw×3

2.2KW×3

2.2KW×3

Blower of nature wind

0.75 KW

0.75 KW

1.1 KW

1.1 KW

1.1 KW

1.5KW

1.5KW

1.5KW

Inking motor

750W

750W

750W

750W

750W

750W

750W

750W

Master frequency converter

Panasonic/ Toshi  batransducer Japan

Bearing

Japan(NSK)

Unilateral bearing

ASNU (Germany)

Weight

4500Kg

4750Kg

56000Kg

5250 Kg

5500Kg

5750Kg

6000Kg

6300 Kg

Master power

25KW

27KW

34KW

37KW

43KW

47KW

55KW

58KW

  Dimension (L×W×H)

4.8m
×
1.8m
×
2.8m

4.8m
×
2.0m
×
2.8m

4.8m
×
2.2m
×
2.8m

4.8m
×
2.4m
×
2.8m

4.8m
×
2.6m
×
2.8m

4.8m
×
2.8m
×
2.8m

4.8m
×
3.0m
×
2.8m

4.8m
×
3.2m
×
2.8m

Printing width Item

600mm

800mm

1000mm

1200mm

1400mm

1600mm

1800mm

2000mm

Printing color

4 color (PC:4+0;3+1;2+2)

Printing length

191-914mm

Printing plate lifting system

Pneumatic/Hydraulic press control

Mechanical speed

90m/min

Printing speed

70m/min

Anilox cylinder

Metal: 10DK-120DK(Germany)

Register precision

Longitude:±0.2mm  Transverse:±0.2mm

Rewinder/Unwinder DIA

ø 800mm

Master motor

3.0KW

3.0KW

3.7KW

3.7KW

5.5KW

5.5KW

7.5KW

7.5KW
