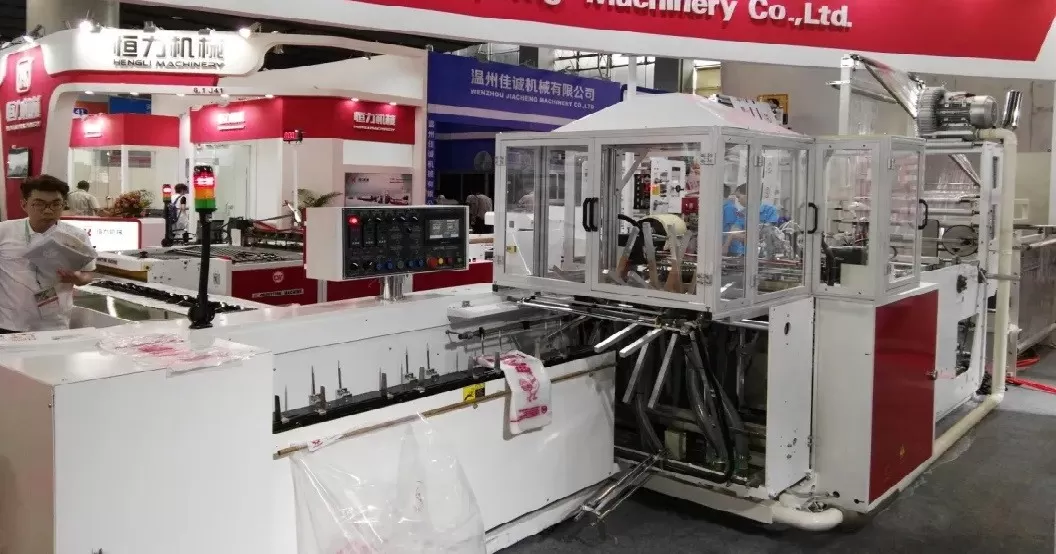

Automatic High Speed Plastic Chicken Bag Making Machine with Wicket Collect

Product Details:
Brand Name: XIAOHAI
Model Number: 800BFS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Contact Now

Product Description

Brief introduce

This machine is specially design for making wicketer bag automatic,it suitable side sealing HDPE,LDPE,CPP,OPP,it has has the excellent speed of 250pcs/min.

Main Features

1) Special servo motor driving.
2) Germany SICK photocell.
3) Rotary-arm unit for collecting bags.
4) Double swing arm dancing,it is suitable for high-speed feeding,the film will not shake.
5) Puncher and collect table with linkage tracking device.

Optional

1.Hanger hole puncher device
2.Bottom round chicken bag puncher device
3.Bottom pre-heating device

4.Dotted line knife

Technical parameter

Model 800BFS
Suit for material HDPE/LDPE/CPP/OPP plastic film
Length of bag-making 300-700mm
Width of bag-making 100-300mm
Bottom gusset 30-70mm
Thickness of ilm 0.03-0.55mm
Speed 250pcs/min
Total power 22KW
Machine weight 2200kg
Overall dimension (LXWXH) 8000*2800*1950mm
Air compressor(not included) 7.5HP
