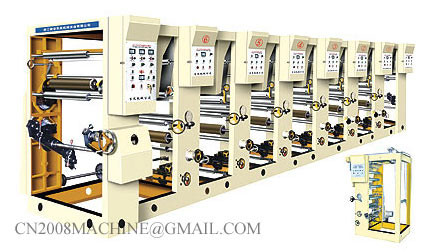

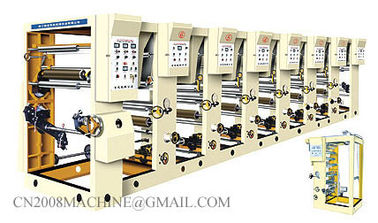

ASY Series Six Color Rotogravure Printing Machine

Model No.

ASY-6600

ASY-6800

ASY-61000

Effective Printing Width

600mm

800mm

1000mm

Max.Width of Web

620mm

820mm

1020mm

Max.Printing Speed

60m/min

60m/min

60m/min

Max.Diameter of Unwind/Rewind

600mm

600mm

600mm

Diameter of Printing Cylinder

70~270mm

70~270mm

70~270mm

Accuracy of Registration

±0.2mm

±0.2mm

±0.2mm

Heating Power of Oven

19.2Kw

24Kw

28.8Kw

Total Power

23.5Kw

29.5Kw

36.5Kw

Weight of Machine

6000kg

6500kg

7000kg

Machine Dimension (mm)

8100×1900×1900

8100×2100×1900

8100×2300×1900
