Product Details:
|
|
Place of Origin: | Made in china |
---|---|
Brand Name: | xiao hai |
Payment & Shipping Terms:
|
|
Delivery Time: | according to the machine,10-30 days. |
Payment Terms: | 30% downpayment and pay the balance before shipment afer test the machine in our factory. |
Product Description

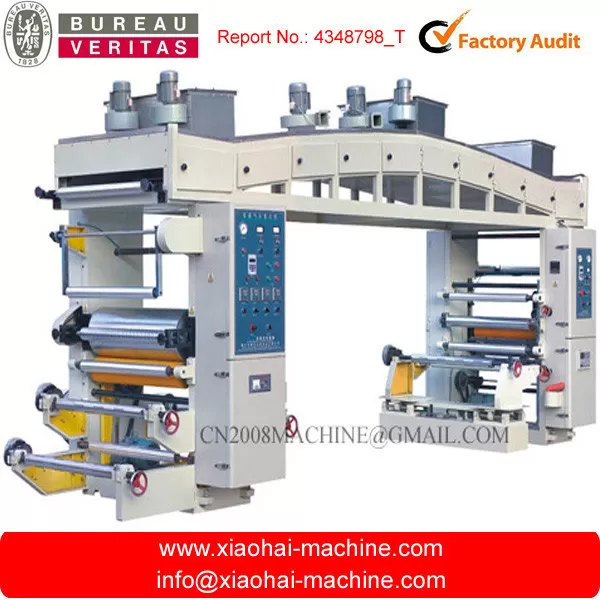

GFA Series Dry Type Laminating Machine
Specification:
Model No. | GFA-600 | GFA-800 | GFA-1000 |
Max.Laminating Width | 600mm | 600mm | 600mm |
| |||
Max.Diameter of Material Roll | | | |
| |||
Layer Quantity of Laminated | 2 layer | 2 layer | 2 layer |
Laminating Speed | 120m/min | 120m/min | 120m/min |
Max.Adjustable Temperature of Oven | 90 | 90 | 90 |
Max.Adjustable Temperature of Hot Cylinder | 80 | 80 | 80 |
Total Power | 37Kw | 45.5Kw | 55Kw |
Weight of Machine | 5000kg | 6000 kg | 7000 kg |
Machine Dimension | 6500×1600×2850mm | 6500×1800×2850mm | 6500×2000×2850mm |
