CY400 Sharp Bottom Food Bread Grocery Paper Bag Making Machine

Product Details:
Place of Origin: China
Brand Name: XIAOHAI
Certification: CE ISO
Model Number: CY-400
Contact Now

Detail Information

Machine Working Video: Http://youtu.be/Cz68R1FcWUg

Product Description

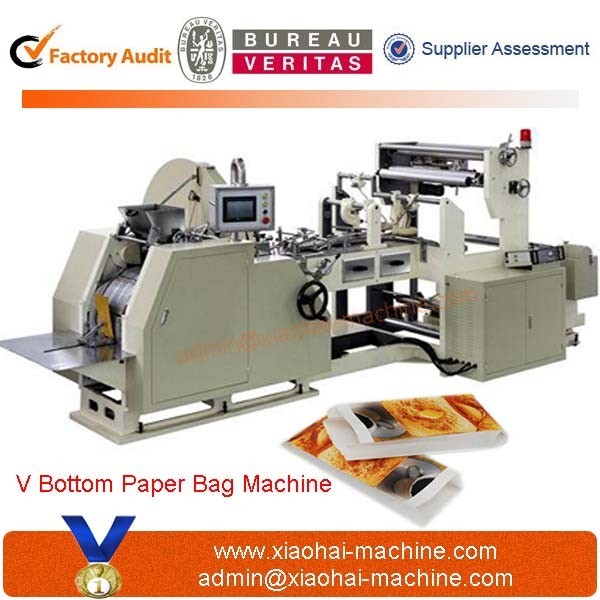

CY400 Sharp Bottom Paper Bag Making Machine


1. Features:Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags etc.


2. Advantages:
1)Suited for 40-80gsm paper. 2)Controls bag length through the human-machine interface. 3)PLC system for calculating parameters. 4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system


3.Technical Parameters:
Paper Weight  40-80g/m2
Bag Length  160-420mm
Bag Width  70-260mm
The width of paper roll  260-720mm
Speed  100-400pcs/min
Total Power  10kw
Power Voltage  380v,50/60 HZ, 3 phases
Total Weight  2500kg
Machine Dimension(L*W*H)  4000*2100*1900mm



4.Configuration Brand and details:
Name and Specification  Quantity Brand, Country
Servo Motor  two sets YASKAWA, Janpan
PLC  1pc Taiwan
Touch Screen  1pc Taiwan
Photo-cell  2 pcs Sick, Germany
Web Edge Control(EPC)  1pc China
Frequency Converter(Inverter)  1pc China



We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc. We have both paper bag making machine with roll feeder and sheet feeder.


Advantages&Service
We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
Machines with good quality in one year, life-long maintenance.
We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
Undertake various non-standard machinery, solve the customers' requirements.
