Product Details:
|
|
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | xiao hai |
|
Payment & Shipping Terms:
|
|
| Delivery Time: | according to the machine,10-30 days. |
| Payment Terms: | 30% downpayment and pay the balance before shipment afer test the machine in our factory. |
Product Description

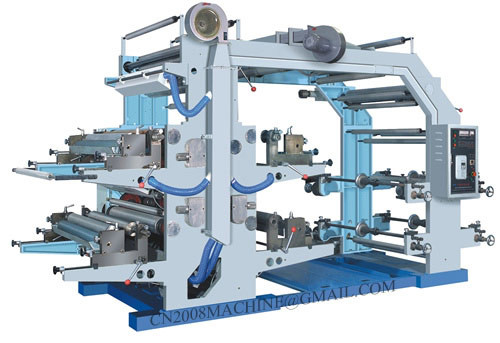

YT Series Four Color Flexo Printing Machine
| Model No. | YT-4600 | YT-4800 | YT-41000 |
| Max.Web Width | 600mm | 800mm | 1000m |
| Max.Effective Printing Width | 560mm | 760mm | 960mm |
| Rangeof RepeatPrinting Length | 191~914mm | 191~914mm | 191~914mm |
| Max.Diameter of Material Roll | | | |
| Printing Speed | 5-50m/min | 5-50m/min | 5-50m/min |
| Plate Thickness(Both side adhesive tape included) | 2.38mm | 2.38mm | 2.38mm |
| Total Power | 11.5Kw | 15Kw | 18.5Kw |
| Weight of Machine | 3000kg | 3500kg | 4000kg |
| Machine Dimension(mm) | 4300×1600×2500 | 4300×1800×2500 | 4300×2000×2500 |
