Product Description

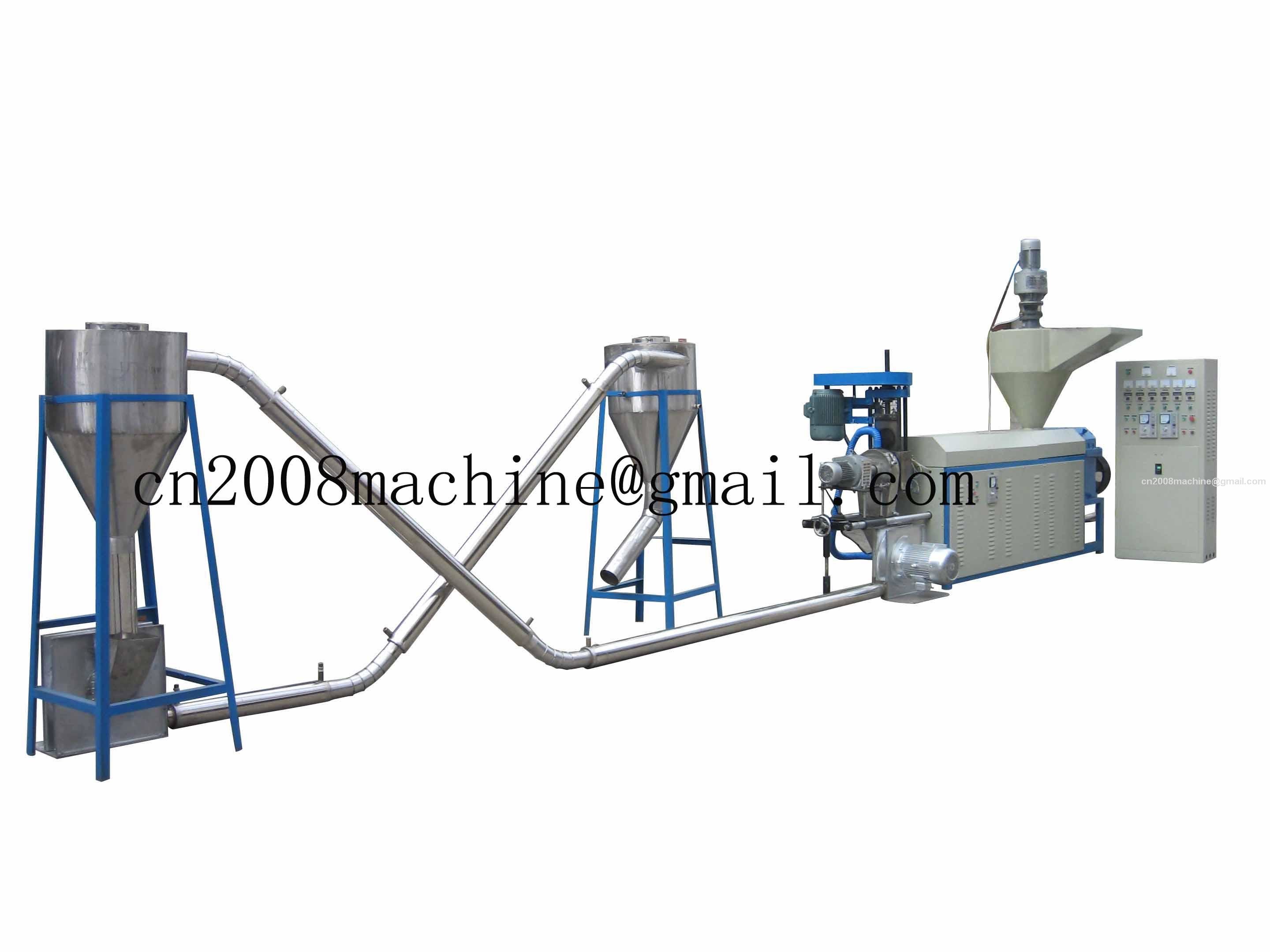

FL series Air Cooling type recycling machine
Usage:
1.This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic temperature controller.
2.The granules are cooled by air.
Model type | FL-110 | FL-120 |
Diameter of Screw Stem | Φ110 | Φ120 |
Major Diameter Ratio of Screw Stem | L/D-20:1 | L/D-20:1 |
Rational Speed of Screw Stem | 10-100r/min | 10-100r/min |
Main Motor Power | 30kw | 45kw |
Output | 90kg/h | 120kg/h |
Weight of overall(kg) | 2800kg | 3000kg |
Machine dimensions(L×W×H)(mm) | 4200mmX1500mmX1800mm | 4400mmX1500mmX1800mm |
