RY Series Automatic self adhesive sticker Flexographic label Printing Machine

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Model Number: RY
Payment & Shipping Terms:
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Product Description

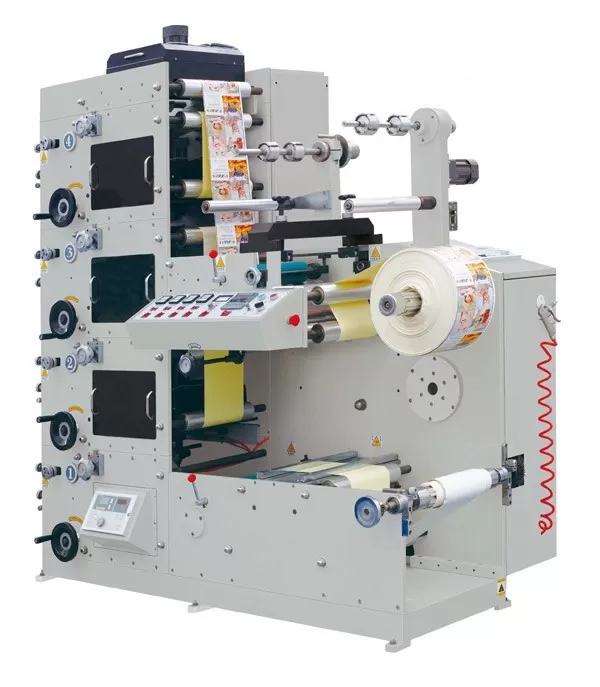

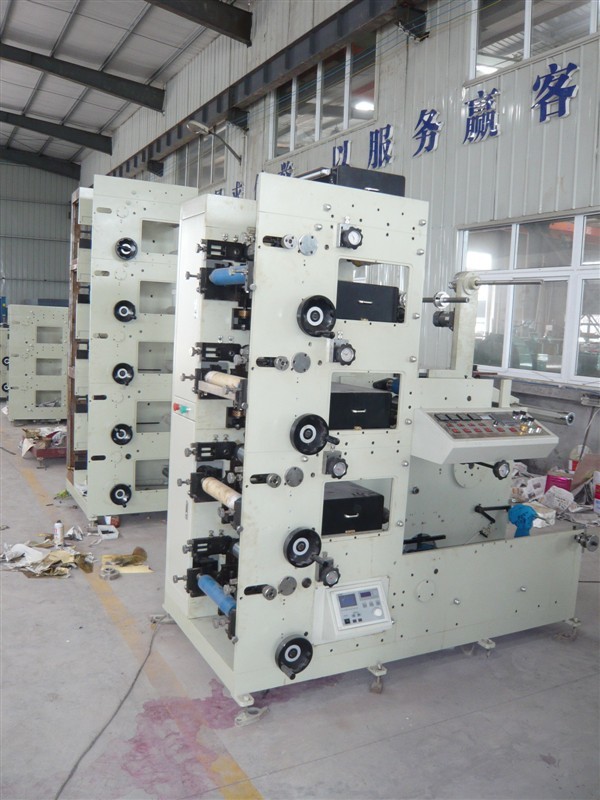

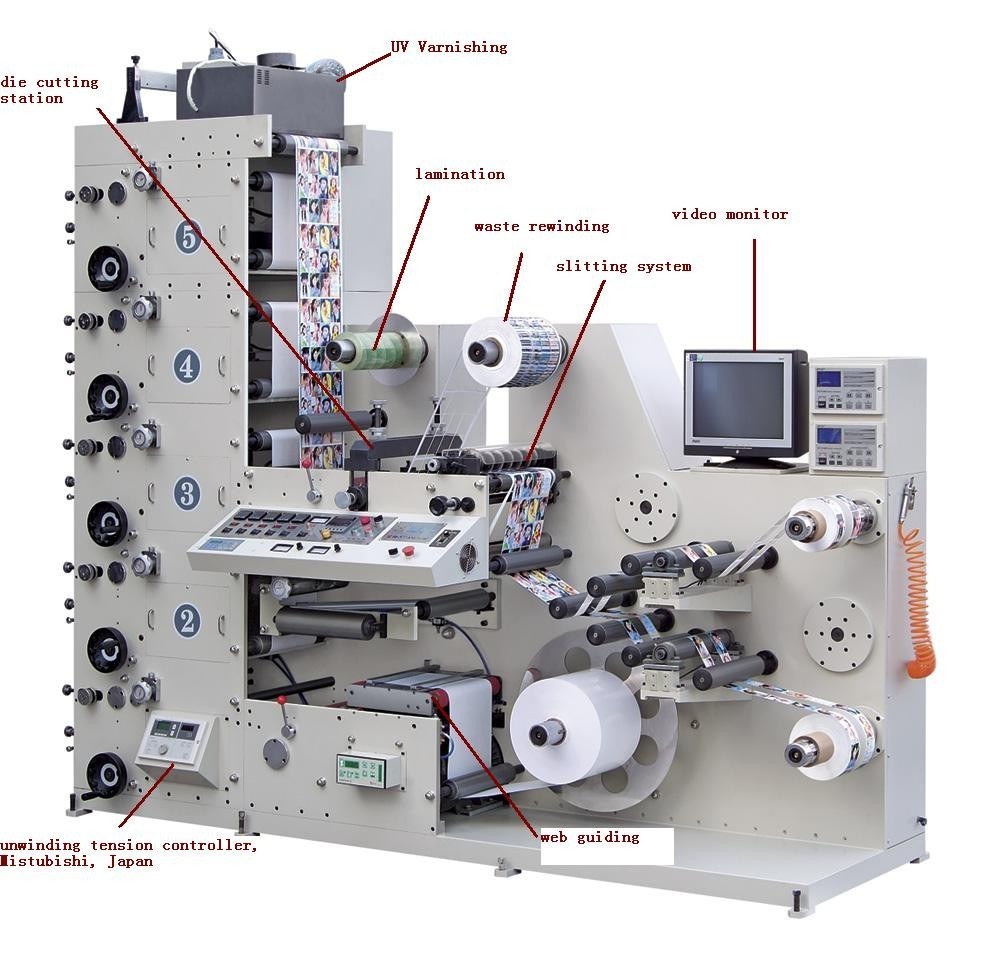

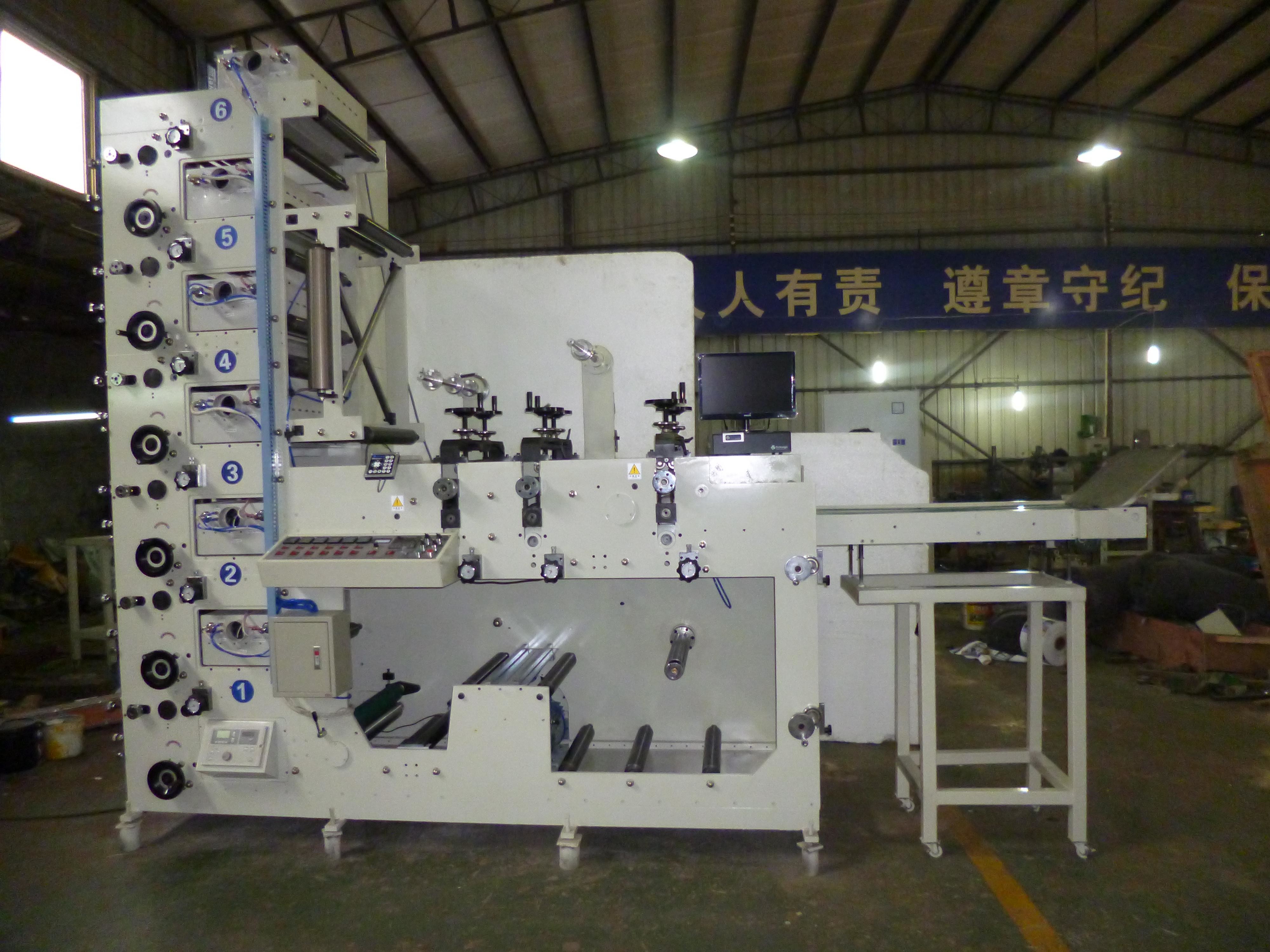

RY Series Automatic self adhesive sticker label Printing machine

RY Series Automatic self adhesive sticker Flexographic label Printing MachineRY Series Automatic self adhesive sticker Flexographic label Printing Machine

Performance and Features:
1. The main motor adopts inverters.
2. Unwinder and rewinder are controlled by magnetic powder brake and clutch(Japanese Mitsbish auto tension controller).
3. Unwinder system is controlled by auto-rectify sensor.
4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.
5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8.The unwinder and rewinder all are with air shafts..
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing. It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.



Model No. RY-320 RY-450
Colors 4-6colors 4-6colors
Web maximum width 320mm 450mm
Max printing width 310mm 440mm
Printing length 175-320mm 175-320mm
Thickness of printing plate 1.7mm 1.7mm
Double faced adhesive tape 0.38mm 0.38mm
Max printing speed 10-60m/ min 10-60m/ min
Unwinder diameter 600mm 600mm
Rewinder diameter 550mm 550mm
Machine weight 2000kg 2300kg
Machine dimension 3000x1500x3000mm 3000x1700x3000mm
