auto stereo carton box erecting Paper box making machine for food packing

Product Description

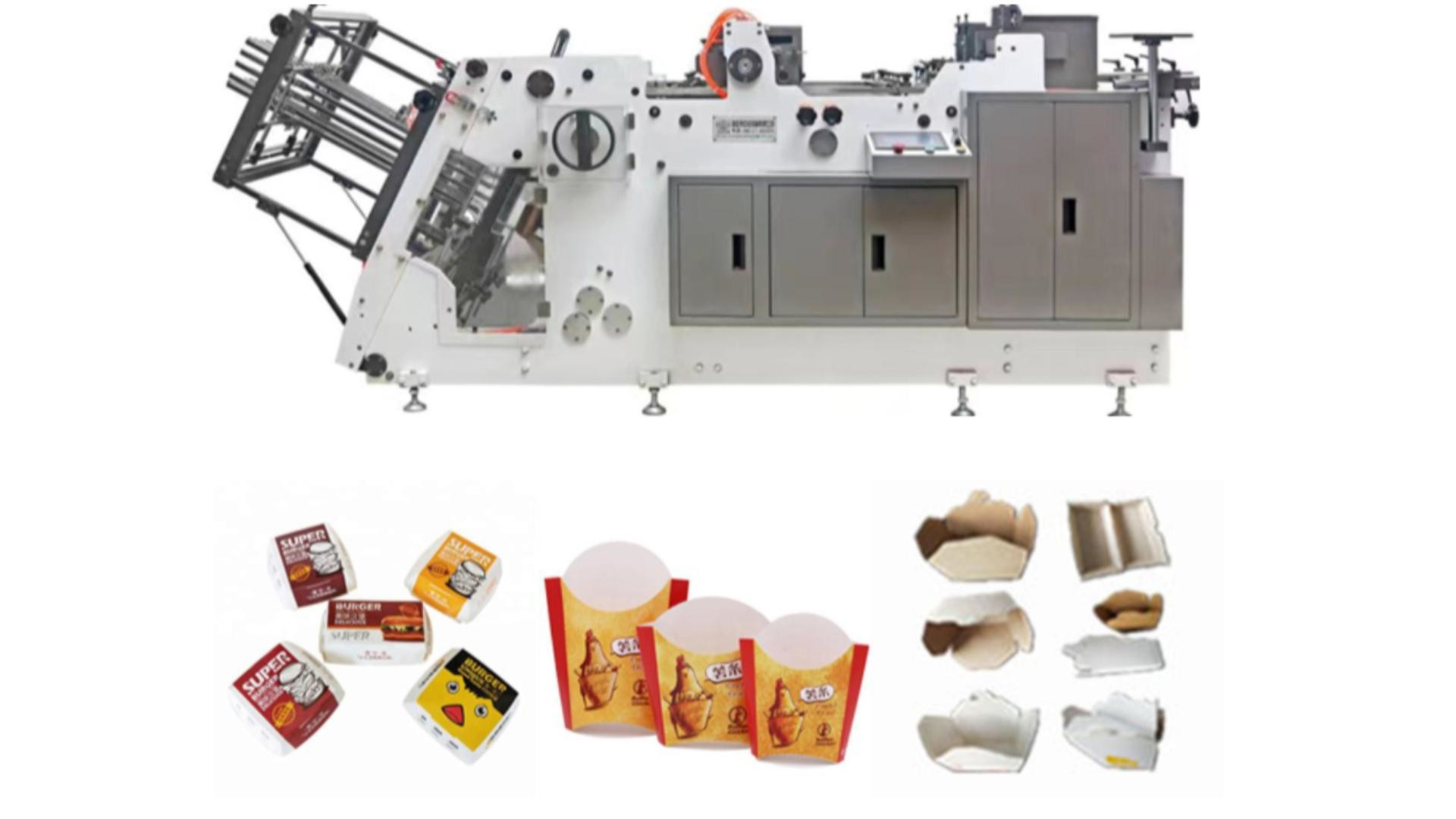

auto stereo carton box erecting Paper box making machine for food packing

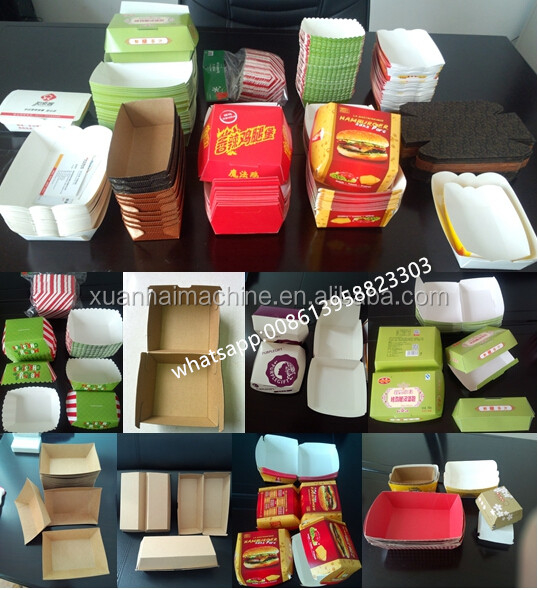

This mahine  is an ideal equipment for the production of carton boxes, We have glue sealing type and heat sealing type. It can work for paper and paper with PE coated. Our carton erecting machine can make box such as hamburgers, french fries boxes, fried chicken boxes, children's lunch boxes, take-out boxes, triangular pizza boxes, etc. The structure is sturdy, good quality, low noise, and high efficiency. It has a paper feeding unit, an adjustment unit, a water unit, a forming unit, a finished product collection unit and a counting unit.

Roofless box MAX:160pcs/min

Square box MAX:150pcs/min

Hot Dog&Burger Box MAX:120pcs/min

Food box MAS:100pcs/min


PS: The above-mentioned production speed is the value under common conditions,the actual value is varied according to the pattern of box, the materials,quality and specifications.

Materials:(200-600gsm) single PE coated paper or 1.5mm thickness corrugated paper.

Use thermal bonding systen to produce aluminum foil and double PE coated paper boxes, one machine can produce various products with short replacing time.

Applies PLC system to control and produce complex boxes.

Model:ZF 800 Burger Box Die Cutter

Production speed: Max 160pcs/min

Raw materials: 200-600gsm cardboard paper,

max thickness of corrugated paper:1.5mm.

Product Advantages:

1.Feature of stereo box die-cutter: high efficiency, reaches 180pcs/min

2.Multifunctionality: can manufacture the products such as meal box, chips box, stereo box or burger box with different specifications on one machine only by changing its molds.

3.This machine applies water-based adhesive coating device, attains high efficiency and very high precision. Water-based adhesive, as water soluble adhesive compostion, is a kind of food-grade glue.

4.Most of the machine applies high-quality sealing bearing, prevents from dust or liquid penetrating and impacting the service life of bearings, with long service life and good stability.

5.The whole is driven by high-quality tinming belts and ensures almost zero error during its operation.

6.Main mould employs pine wood, enjoys high efficiency when replacing its mould.

7.Can automatically collect, store and count finished products, and install additionally counter as per the requirements of customers.

8.The machine applies PLC intelligent control system, and automatically stop when there is paper jamming or no paper. It can avoid unnecessary harm caused by the contact between worker and operation mechanism during the production process.

Standard configuration:

·Integral electric control box ·Feeding unit

·Compressed air device ·Moulding unit

·Water based adhesive coating device ·Servo control unit

·Discharge unit ·A forming die

Opitional :

Hot melt coating system

Air compressor / Dryer

380V power : 15KW

Machine power: 380v
