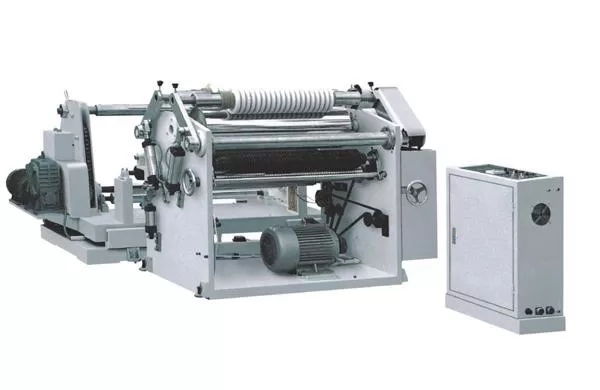

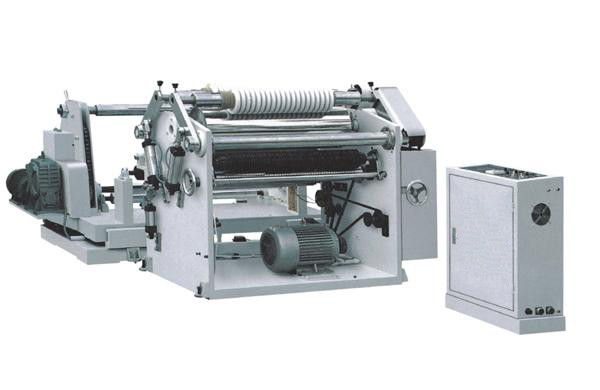

ZKF-600-1200 Slitting rewinding machine for surface rolling

Performance & Features:?
This machine is an ideal equipment which is suitable for small-scale cutting these materials,such as reel paper, plastic piece, Al foil, PVC,plastic film and insulation material, etc.The main machine features with frequency speed control, unwinding with constant tension magnetic powder control, photo electricity automatic deflection-rectifying, winding with bothcentral and surface reeling which coordinated controlled (air pressure) by two magnetic powder clutches and main machine, interleaving winding with double shafts and never undercutting, presetting counter and automatic stop.

Main Technical Parameters:

Model: ZKF-600-1200

Max.width of row material

600-1200mm

Max.diameter of row material

φ1000mm

Internal diameter of rolling paper core

φ25-φ76mm

Internal diameter

φ420mm

Min.width of split cut

Flat knife (5mm) round knife (6mm)

Electrical machinery power

5.5/7.5kw

Weight

3000kg

Overall dimension

2500x2500x1100mm

Max.width of row material

600mm

Max.diameter of row material

Φ600mm

Internal diameter of rolling paper core

φ25-φ76mm

Internal diameter

φ420mm

Min.width of split cut

Flat knife (5mm) round knife (6mm)

Electrical machinery power

5.5

Weight

2000kg

Overall dimension

2500x1900x1100mm
