ZD Series Computer Control High Speed Central Sealing And Three Side Sealing Bag Making M

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Certification: CE ISO
Model Number: ZSD
Payment & Shipping Terms:
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Product Description

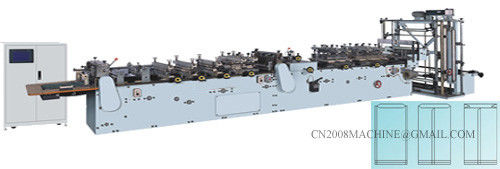

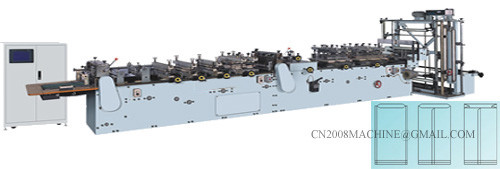

ZSD Series Computer Control High Speed Central Sealing And Three Side Sealing Bag Making Machine ( both bag in one machine)

Specification:

Model No.

ZSD-300

ZSD-400

Max.Diameter of Roll Material

ZD Series Computer Control High Speed Central Sealing And Three Side Sealing Bag Making M600mm

ZD Series Computer Control High Speed Central Sealing And Three Side Sealing Bag Making M600mm

Max.Width of Roll Material

640mm

840mm

Width of Bag-making

50~300mm

50~400mm

Length of Bag-making

50~300mm

50~300mm

Speed of Bag-making

40~150pcs/min

40~150pcs/min

TemperatureControl Range

0~300ZD Series Computer Control High Speed Central Sealing And Three Side Sealing Bag Making M

0~300ZD Series Computer Control High Speed Central Sealing And Three Side Sealing Bag Making M

Total Power

11.5Kw

13.1Kw

Weight of Machine

2300kg

3000kg

Machine Dimension(LxWxH)

7500×1400×1800mm

7500×1500×1800mm

Main device of the list





Components Name



Name of   accessory



Type



Quantity



Provider







Traction Parts



Traction



motor(servo)



1.5 KW



1 pc





Yaskawa -Japan



1 kw



1 pc

Pneumatic

Components





several



SHANKO Taiwan





Main transmission



reducer

1:10



1 set



ZHIBAO- Taiwan



Inverter



2.2 KW



1 set



Yaskawa-JAPAN



Feeding device



Inverter



0.75KW



1 set



Yaskawa-JAPAN















Controlled device



PLC





1 set



Panasonic-Japan



Touch screen



10.4 inch



1 set



Weinview-Taiwan



Solid State Relay





16 pcs



Shanghai   China

Magnetic powder

brakes



2.5 kg



1set



Ruian China



EPC





1 set



China



Photocell







KONTEC from Taiwan



ZD Series Computer Control High Speed Central Sealing And Three Side Sealing Bag Making M
