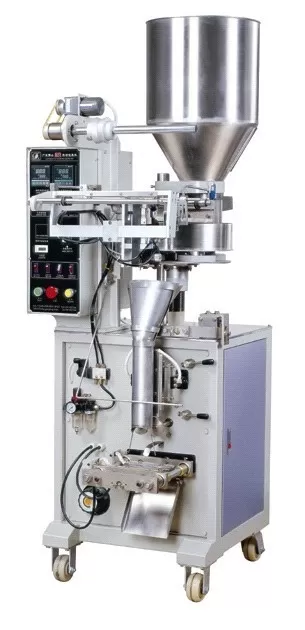

Vertical packing machine

Product Description

Vertical packing machine

Solid material which shape is roll, grain or slice. Such as puffed food, shrimp
slice, peanuts, popcorn, chocolate, seeds, oatmeal, coffee, white sugar,
electuary and solid beverage etc.
Features:
 Simple operation
 Easy maintenance
 Durable
 Efficient follow-up service
1. High precision, high efficiency without crash the materials.
2. Full automaticity. The machine complete the whole procedure of feeding,
measuring, bagging, date printing, charging, product out put automatically.
3. High sensitivity photoelectric eye color tracing, numerical input of cutting
sealing position for extra accuracy.:
:
Type TCLB-320A
Film width 320mm
Packing material OPP/CPP,OPP/CE,PET/PE
Film roll diameter Max.300 mm
Packing speed 30-100 bags/min
Bag size (L)30-200 mm (W)50-150 mm
Measuring range 50-500ml
Power 220V,50HZ,2KVA
Machine size (L)900×(W)680×(H)1960
Machine weight 300Kg
