YT Series Four Color Flexo Printing Machine

Contact Now

Product Description

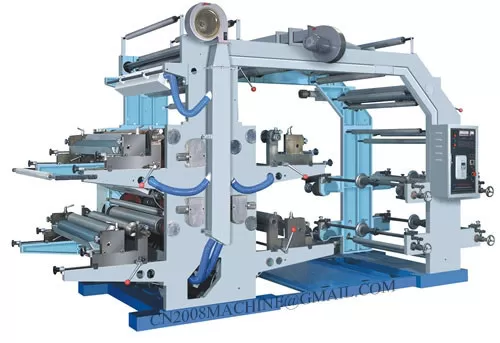

YT Series Four Color Flexo Printing Machine

Usage:
It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.

Performance and Features?
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Specification:

Model No.

YT-4600

YT-4800

YT-41000

Max.Web Width

600mm

800mm

1000m

Max.Effective Printing Width

560mm

760mm

960mm

Rangeof RepeatPrinting Length

191~914mm

191~914mm

191~914mm

Max.Diameter of Material Roll

450mm

450mm

450mm

Printing Speed

5-50m/min

5-50m/min

5-50m/min

Plate Thickness(Both side adhesive tape included)

2.38mm

2.38mm

2.38mm

Total Power

11.5Kw

15Kw

18.5Kw

Weight of Machine

3000kg

3500kg

4000kg

Machine Dimension(mm)

4300×1600×2500

4300×1800×2500

4300×2000×2500
