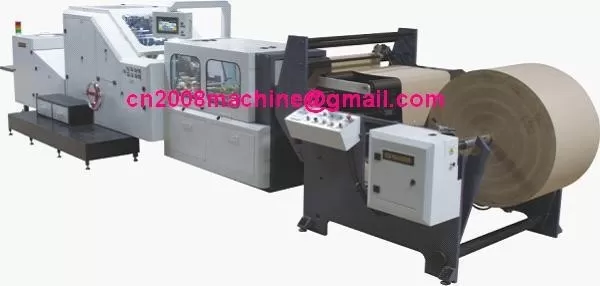

CY290/CY460 Roll Feeding Square Bottom Paper Bag Making Machine

Product Details:
Place of Origin: Made in china
Brand Name: xh
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 145000USD
Packaging Details: wooden box packing
Delivery Time: 30 days
Payment Terms: 30%TT,balance before shipping
Supply Ability: 30 sets per month
Contact Now

Product Description



Model

CY290

CY460

Width of Paper roll

320-930 mm

600-1300 mm

Length of Bag

155-505 mm

155-505 mm

Width of Bag

80-290 mm

220-460 mm

Width of Bag Bottom

60-160 mm

60-180 mm

Paper weight

60-180 g/m2

60-180 g/m2

Max. Diameter of Paper Roll

ф1500 mm

ф1500 mm

Internal Diameter of Roll Core

ф76 mm

ф76 mm

Max.Speed

200 pcs/min

200 pcs/min

Total Power

15Kw

15Kw

Weight of Machine

Approx 9000 kg

Approx 10000 kg

Overall Dimension(L*W*H)

8600 mm × 2500 mm × 1800 mm

8600 mm × 3000 mm × 1800 mm
