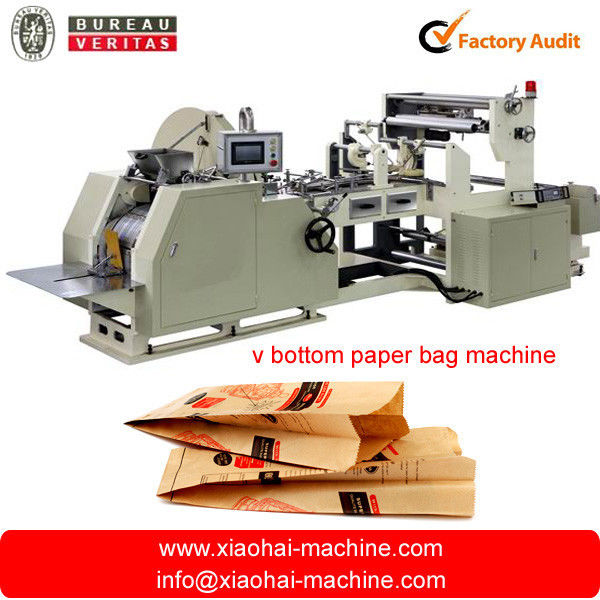

NCY-400-600-2C/4C V bottom Paper Bag Machine With 2 / 4 colors printing Unit Inline

Product Details:
Place of Origin: China
Brand Name: XIAOHAI
Certification: CE ISO
Model Number: NCY-2
Contact Now

Detail Information

Machine Working Video: Http://youtu.be/Cz68R1FcWUg

Product Description

  • . Sharp Bottom Paper Bag Making Machine


1. Features:Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags etc.


2. Advantages:
1)Suited for 40-80gsm paper. 2)Controls bag length through the human-machine interface. 3)PLC system for calculating parameters. 4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system


3.Technical Parameters:
Paper Weight  40-80g/m2
Bag Length  160-420mm
Bag Width  70-260mm
The width of paper roll  260-720mm
Speed  100-400pcs/min
Total Power  10kw
Power Voltage  380v,50/60 HZ, 3 phases
Total Weight  2500kg
Machine Dimension(L*W*H)  4000*2100*1900mm



4.Configuration Brand and details:
Name and Specification  Quantity Brand, Country
Servo Motor  two sets YASKAWA, Janpan
PLC  1pc Taiwan
Touch Screen  1pc Taiwan
Photo-cell  2 pcs Sick, Germany
Web Edge Control(EPC)  1pc China
Frequency Converter(Inverter)  1pc China

  • flexo printing machine inline
  • Usage:
    It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
    It's quite commonly used for small order quantity printing service.



    Performance and Features:
    1. Easy operation, flexible starting, accurate color register.
    2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
    3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
    4. The printing ink is spread by the anilox cylinder with even ink color.
    5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
    6. 360°continuous and adjustable longitudinal register device.
    7. The frequency control of motor speed adapts to different printing speeds.
    8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



    Max.Web Width

    800mm

    1000m

    Max.Effective Printing Width

    760mm

    960mm

    Range of Repeat Printing Length

    191~914mm

    191~914mm

    Max.Diameter of Material Roll

    450mm

    450mm

    Printing Speed

    5-50m/min

    5-50m/min

    Plate Thickness(Both side adhesive tape included)

    2.38mm

    2.38mm

    Total Power

    15Kw

    18.5Kw

    Weight of Machine

    3500kg

    4000kg

    Machine Dimension(mm)

    4300×1800×2500

    4300×2000×2500
