|Place of Origin:||Made in china|
|Brand Name:||xiao hai|
Payment & Shipping Terms:
|Delivery Time:||according to the machine,10-30 days.|
|Payment Terms:||30% downpayment and pay the balance before shipment afer test the machine in our factory.|

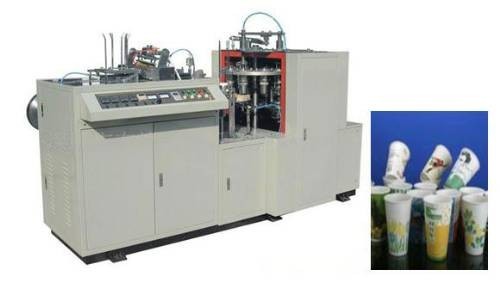

ZB-12 Paper Cup Machine
Brief Introduce : ZB-12 type single PE coated paper cup machine is the automatic environmental machine with multi-running positions.
This machine runs a whole procedure of paper-feeding , cup-fan-wall sealing, oiling, bottom punching, heating, rolling,rimming, rounding and tripping.
It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers.This type paper cup machine is mainly used to make one side PE coated paper cups from 3 oz to 18 oz.
Main Technical Data:
· Paper Cup Sizes: 3,4,5,6.5,8,9,10.5,12,16,18 OZ or other sizes
· Row material: Single side(one side) PE(polyethylene) film coated paper
· Suitable paper weight: 150--400 gsm (Recommend 180--300 gsm)
· Speed of making paper cups: 45--55 pcs per minute
· Limit of temperature control: 0--400 Centigrade
· Total power: 4 KW
· Power source: 380 V,220V 50 Hz,60 Hz or other Customer needed
· Whole machine weight: 1400 kg
· Appearance size(L x W x H): 2500 x 1200 x 1400 mm
· Note:We can make the paper cup machine suitable for your requirement
Paper cup bottom diameter (outside) , Min 30mm---Max 78 mm
Paper cup top diameter (inside) , Min 45mm---Max125mm
Paper cup height , Min 32mm ---Max 130 mm
the top curling diameter, from 2.4mm to 5mm, this is decided by the paper weight(the paper thickness),
Single side PE coated paper cups are widely used for hot drinks( hot coffee cups, hot water), some cold drinks(ice-cream cups). One side PE coated paper cups is not suitable for some certain beverage: coca-cola, coke, cold beer. The reason is when a certain beverage or cold beverage filling in one side PE coated paper cups, the paper become softened and the water will leak out slowly.
IF you really want to produce the cups filling beverage or cold drinks, recommend you use double PE coated paper cups produced by ZB-12 double sides PE coated paper cup machine
· Automatic control adopts optically controlled non-contact switch,
· Micro-controlled transducer,
· Step-less speed adjustment,
· Paper Cup-fan-wall body sealed by heater,
· Paper Cup bottom sealed by heater.
· Full automatic,
· Easy changing molds produce different sizes paper cups,
· Easy operating by operator (one operator is enough),
· Easy maintenance with minimum cost,
· Cheap operating cost and low investment,
· Amelioration:Air compressor aren't required for this type paper cup machine.
