NO LABOR fully automatic rewinding garbage bag making machine with auto down

Product Details:
Place of Origin: CHINA
Brand Name: XIAOHAI
Contact Now

Detail Information

Voltage: 220V/380V Automatic Grade: Automatic
Condition: New Packaging Type: Bags
Packaging Material: Plastic Driven Type: Electric
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 1 Year

Product Description

Usage and features:

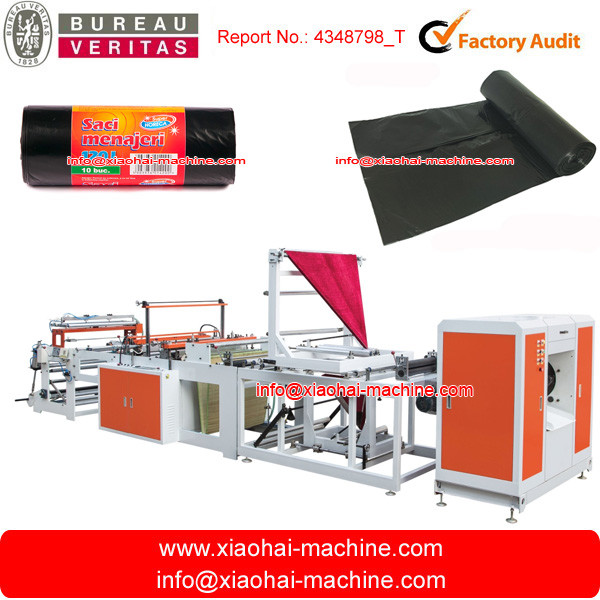

This machine is applied to making big linkage bags,and fold the film as 3-layer or 4-layer. This machine rewinding bags automatic,without paper-core. We also can increase rope-bag function in this machine.





Main technical parameters:



Model 820C 1020C
Producing length 400-1200mm 400-1800mm
Producing width 800mm 1000mm
Rewinding width 280mm 320mm
Max.Producing speed 110pcs/min 120pcs/min
Total power 8kw 9kw
Film of thickness 0.01-0.04mm 0.01-0.04mm
Weight 1500kgs 1700kg
Overall size 5800x1800x2100mm 6800×1800×2200mm
