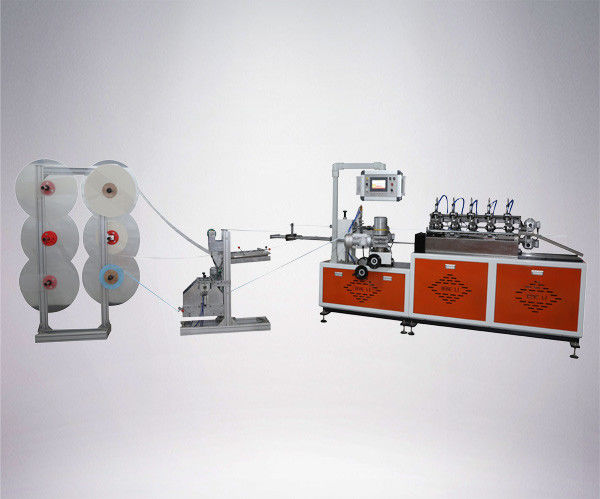

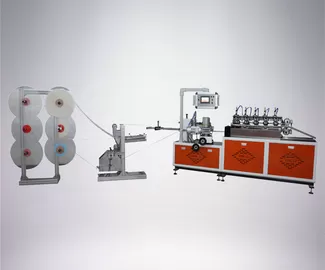

High speed Paper drinking straw making machine

Product Details:
Place of Origin: zhejiang , China (Mainland)
Brand Name: XIAOHAI
Certification: CE
Model Number: SC-240
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: seaworthy package
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Contact Now

Detail Information

Condition: New Voltage: 380v
Power(W): 6KW Dimension(L*W*H): 3500x1500x1200mm
Weight: 1800kgs Warranty: One Year
After-sales Service Provided: Overseas Service Center Available Application: Paper Straw Making Machine

Product Description



Feature:

The machine can frequency conversion timing and automatic count.It can print in one side or double side,the color is clear and brilliant.Adopts the lithe board plate-making skill and prints with the water-based printer ink,then produce the finished product printing,feeding,sealing and cutting.The only machine can pack different size products.



Main technological parameter:





Technical Parameter
Paper Layer 3 layers
Inner Diameter 4.5-12mm
Wall Thickness 0.3-1mm
Cutting length 120—850mm
Winding Speed 1-40 meters/min
Working Air Pressure 0.6Mpa
Power 6 KW
Cutting System Multi-blades (5 pcs)
cutting system Servo motor synchronism tracking cut
Gluing Way Single/Double sides
Machine & Parts Metal(Painting)
Straw Collector Manual
Operator 1-2 person
Speed Control By Inverter
Power Supply 380V/3Phase/50Hz
Control System
Main Motor 2pcs Siemens(1.5KW)
Touch screen weinview
Inverter Schneider
Electric Components Schneider
Pneumatic Components 5pcs AIRTAC
Servo Motor Schneider
Servo Driver Schneider
Configuration
Paper Reel Stand & Glue Unit 3 Layers
Belt 5 Pieces
Mandrel Shaft 2 Pieces
Useful Tool 1 Set
Measurement & Weight
Measurement 3500x1500x1200mm
Working Space 7000*5000mm
Weight 1800kgs

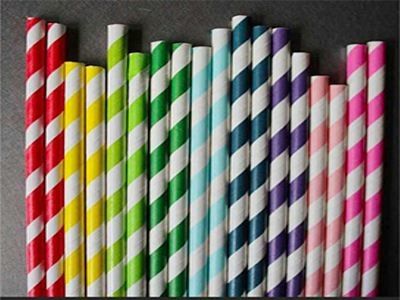

Sample:

High speed Paper drinking straw making machineHigh speed Paper drinking straw making machine
