One Color plastic drinking Straw Production Line

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Product Description

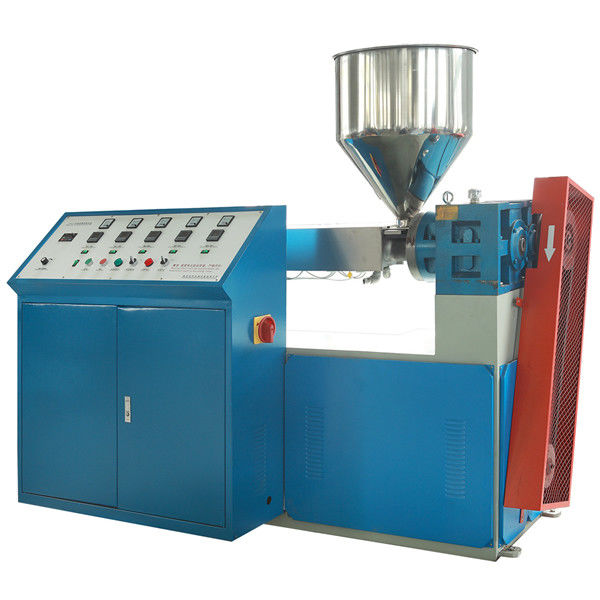

One color drinking straw production line

Description:

011 one color drinking straws extrusion line uses polypropylene (PP) as raw materials, with the use of masterbatches, after melting, extrusion, shaping, cooling, pulling, cutting, then produce transparent, one color, two color, and three color drink straws. It is composed of main body, tooling, cooling system, cutting machine, with a variety of models such as single color extrusion line, two color and two color co-extrusion line, three color extrusion line, etc.

Characteristics:

1. Wide application: Drinking straw, candy bar, pen tube, cotten swab stick, medical tube, all kinds of toys tube, etc.

2. Easy to operate. One operator is enough to run the whole line

3. Cut form: Diversified in cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°

4. With stable output and wide range of color options. (single, two, three or multi-color stripes, straight or spiral)



Specification:



Model No.

XG-1

XG-2

XG-3

XG-4

One color Straw

Double colors straw

Tricolor Straw

Four Colors Straw

Extruder

Screw dia.

50 or 55

50 or 55

50 or 55

50 or 55

Screw L/D ratio

25:1

25:1

25:1

25:1

Motor

11kw or 15kw

11kw or 15kw+
0.7kwx1

11kw or 15kw+
0.7kwx2

11kw or 15kw+
0.7kwx3

Take up and Cutting Device

Inveter

0.75KW×2

0.75KW×2

0.75KW×2

0.75KW×2

Capability

Extruding Output

25-35Kg

25-35Kg

25-35Kg

25-35Kg

Product length

≥5mm

≥5mm

≥5mm

≥5mm

Product Outer Dia.

0.8mm-8mmor 0.8mm-13mm

0.8mm-8mmor 0.8mm-13mm

0.8mm-8mm
or 0.8mm-13mm

0.8mm-8mmor 0.8mm-13mm

Total Weight

900

1000

1200

1300



One Color plastic drinking Straw Production LineOne Color plastic drinking Straw Production LineOne Color plastic drinking Straw Production Line
