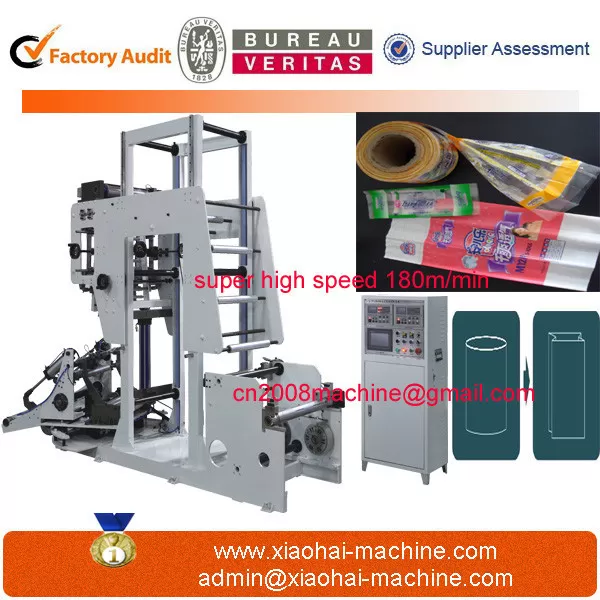

Vertical gusset machine





Technical parameters:

Materials  :                           PE,milky white PE,CPP

Max dia of unwinding  :        700mm

Max dia of  winding  :           1000mm

Machine speed  :                 180m/min

Max dia of width before inset :   520mm

Max dia of width after inset :    400mm

Form thickness :                  0.025mm~0.07mm

Alarm  :                                Buzzing alarm

Weight  :                              About 2T

Overall dimension :              3000×2200×2750 mm(L×W×H)

Working Voltage :                Three phase four wire AC380V 50Hz  5KW

All guide roller made of hard oxidation roll,steel plate frame



Main Configuration :

1.Main Controller :

"Omron”PLC main controller and  “Kunlun”color touch screen

Automatic to calculate materials meter

Host tension adopts three phase asynchronous motor vector inverter as speed regulator



2.Unwinding :

Single station 3inch title type air expansion shafts(Equipped with mechanical shafts ) to unwinding

Tension adopts  calculation magnetic automatic tension controller system ,loading by air cylinder

Unwinding equipped with process deviation-correcting controller system and the deviation implement motor is synchronous motor



3.Insert  parts :

Adopts under insert forming structure ,upper nip roller can according to film to lift by motor

Adopts V guide roller type double spile  and can adjust inserter size



4.Electric –Eye :

Two sets of Taiwan “Futai ”electric –eye



5.Unwinding parts:

Unwinding shafts  rotary type with motor ,this motor equipped with vector inverter to ensure that the rotation Angle of the precision and wide range of rotary

Unwinding adopts 3inch title type air expansion shafts

Tension adopts calculation magnetic automatic tension controller system

Double air cylinder plug type Pressure arm according to film adhere to Anti-skid roll with anti-skid tape



6.Protector device :

Dangerous parts we post yellow alarm mark for machine



Supporting facilities: (Customers take charge of the following devices)

a,Power: Three phase AC380V 50Hz and ground wire (requirement: throw the reinforcing steel bar or steel tube with diameter 30~50mm and length more than 1.5m into the earth, and the 4 square mm traverse to fetch out on the above) , forbid connecting the null line to the machine

b,Air source pressure: 6~10kg/cm²

c,Installation field: The ground hardness should have the good condition to meet the requirement so that after the debugging is finished, in the running process, the machine can run stable and normal).
