Product Description

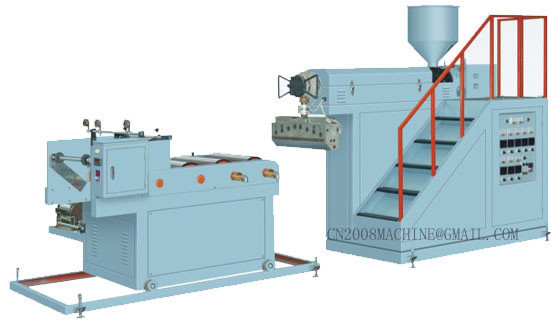

8.SF Series Stretch Film Making Machine
Usage:
It is used for making stretch film to pack pallets etc. goods.
Performance and Characteristics
The machine is used to making LLDPE as main material and adopts several kinds of resins to produce the double-side self-sticky stretch wrapping film. The film has good stretch strength,anti-puncturable ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrinking packaging film during transportation.
Specification:
Model No. | DF-500 |
Diameter of Screw | 55mm |
L/D | 28:1 |
Rotation speed of screw | 10-120rpm |
Folding Width of Products | 200-500mm |
Width of T-die | 600mm |
Thickness | 0.008-0.05mm |
Main motor power | 15kw |
Heating Power | 24kw |
Traction power of waste edge | 0.75kw |
Ouput | 30kg/h |
Cooling way | water 4T/h |
Machine weight | 2200kg |
Machine Dimension(LxWxH) | 5600x1500x1800mm |
