BSY-C Series Eight Color Computer Control High Speed(140m、Min)Rotogravure Printing Machine

Contact Now

Detail Information

High Light:

flexo printing machine

,

label printing machine

,

plastic printing machine

Product Description

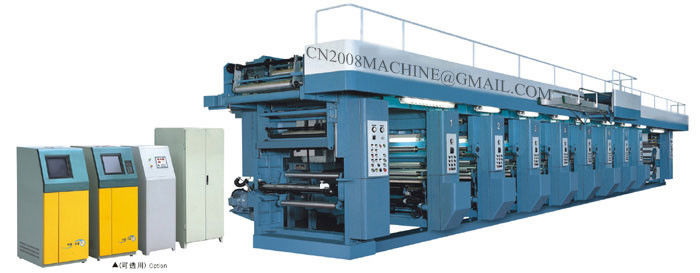

BSY-C Series Eight Color Computer Control High Speed(140m、Min)Rotogravure Printing Machine

Usage:
This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.

Performance and Features?
1.Every control module of the automatic color register system
is equipped with microprocessor and
can correct the deviation of color register quickly and accurately.
2.Imported vector seven motor synchronous controls.
3.Interactive interface:10.4" LCD touch screen
4.Automatic tension control for unwinding, input dragging,
output dragging and winding, automatic
cutting for unwinding and winding, and synchronous control
for moving of printer
5.Closed oven and independent heating hot air blowing
system, automatic constant temperature system.
6.Pneumatic impressing system and pneumatic
doctor blade system
7.Diaphragm-type pneumatic ink auto circulating system
8.Inflatable loading and unloading shaft
9.Printing linear speed and meter counting display
10.Shaft less printing cylinder loading device
11.Option: Web video

Specification:

Model No.

BSY-C8800

BSY-C81000

Effective Printing Width

800mm

1000mm

Max.Printing Speed

140m/min

140m/min

Max.Mechanical Speed

160m/min

160m/min

Max.Diameter of Unwind/Rewind

600mm

600mm

Inside Diameter of Roll Core

76mm

76mm

Diameter of Printing Cylinder

120~300mm

120~300mm

Accuracy of Computer Registration

±0.2mm

±0.2mm

TensionControl Range

0~25kg/Full Width

0~25kg/Full Width

Heating Power of Oven

124kw

144Kw

Total Power

200kw

214Kw

Weight of Machine

25000kg

30000kg

Machine Dimension(mm)

16300x3400x3100

16300×4000×3100
