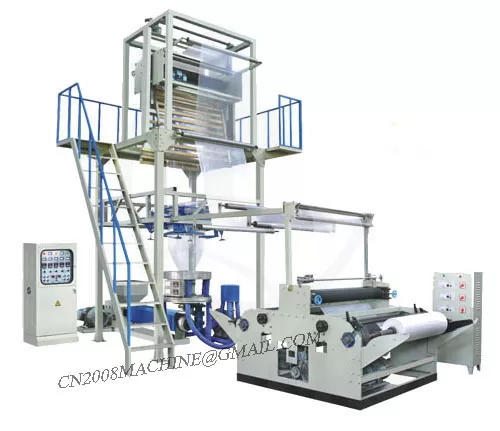

1-2.SJ-B Series Pe Film Blowing Machine

Model No.

SJ-B50

SJ-B55

SJ-B60

Screw Diameter

50mm

55mm

60mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

600mm

800mm

1000mm

Single side thickness of Film

0.008-0.10mm

0.008-0.10mm

0.008-0.10mm

Power of Main Motor

11KW

15KW

18.5KW

Output

40kg/h

50kg/h

60kg/h

Total Power

22Kw

26Kw

30Kw

Weight of Machine

2000kg

2300kg

3000kg

Dimension(mm)

5700x1800x3600

6000x2000x4000

6500x2200x4500

Model No.

SJ-B65

SJ-B80

SJ-B100

Screw Diameter

65mm

80mm

100mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

1200mm

1500mm

2000mm

Single Side Thickness of Film

0.008-0.10mm

0.008-0.10mm

0.008-0.10mm

Power of Main Motor

22KW

30KW

45KW

Output

70kg/h

100kg/h

160kg/h

Total Power

42Kw

56Kw

88Kw

Weight of Machine

3800kg

4600kg

60000kg

Dimension(mm)

6800x2400x4800

7000x2700x5500

8000x3200x7600

Model No.

SJ-B100

SJ-B110

SJ-B120

Screw Diameter

100mm

110mm

120mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

2000mm

2500mm

3000mm

Single Side Thickness of Film

0.02-0.10mm

0.02-0.10mm

0.02-0.10mm

Power of Main Motor

55KW

75KW

90KW

Output

160kg/h

190kg/h

220kg/h

Total Power

88Kw

106Kw

126Kw

Weight of Machine

60000kg

9000kg

12000kg

Dimension(mm)

8000x3200x7600

9000x3700x8700

1000x4200x9800
