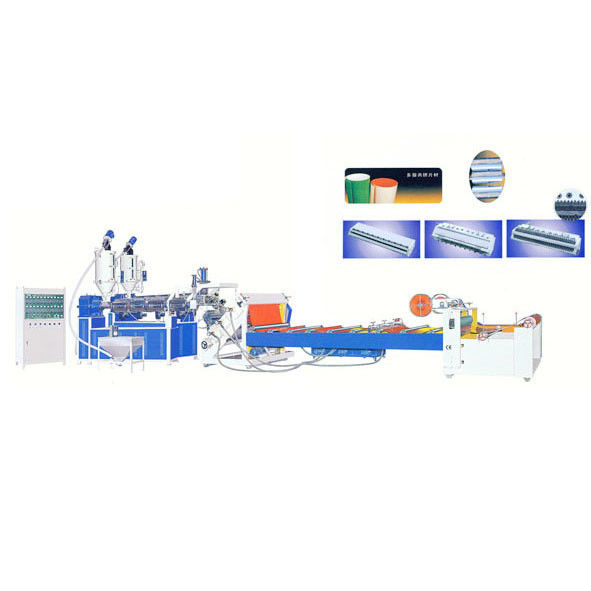

double screw co-extrusion sheet extruder

Main Technical Parameter:

Max.output

150kg/h

Motor Power of baller

3Kw

Addition distance of felt wrapped roll

0-20mm

Extrusion machine

4200×1600×2100

Dia of screw stem

90mm-110mm

Heating Power of drum

16.5kw

Fzce length of felt wrapped roll

750mm

Assist extruder

3200×1600×2100

Nataral scale

30:1

Heating Power of drum

6kw

Number of felt wrappeil roll

3

Press-Polishing machine

1400×1100×1900

Width of die mouth

750mm

Heating Power of die head

6.6kw

Motor Power of extrusion machine

30kw-45kw

Electric control console

1100×400×1860

Thickness of die mouth

0.3-2mm

water consumption

10m3/h

Motor power of mash changer

1.1kw

Baller

470×1400×1450

Dia of felt wrapped roll

270mm

Overall dimensions

Long×with
×High

Motor Power of Press-polishing machine

3kw

Weight

6t
