Plastic cup and paper Cup counting machine

Product Details:
Place of Origin: China,Ruian
Brand Name: XIAO HAI
Contact Now

Product Description

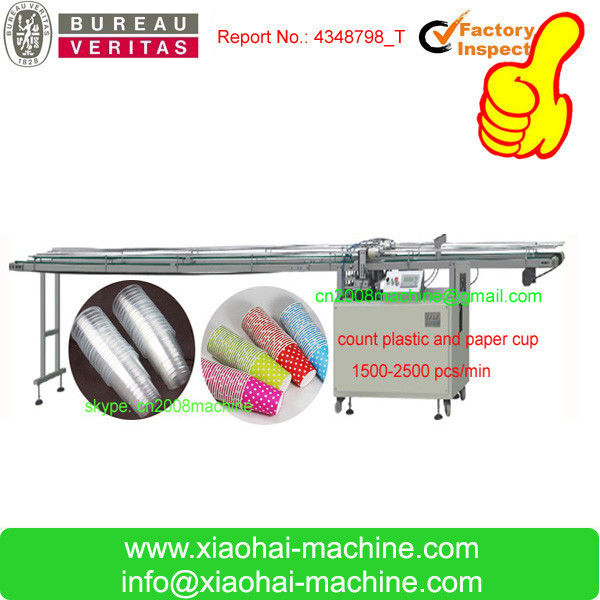

Plastic cup and paper Cup counting machine

This machine adopts touch screen PLC, Servo motor drives two-way to count cups; All imported components and parts choose international famous brand; The body is of compact construction. It can reach the advantages of stable performance, high precision, fast speed and simple operation.

Main technical parameters:

Speed

1500-2500 pcs/min

Cup Diameter

50-100mm

Servo Motor

0.4kw

Conveying Motor

0.9kw

Air pressure

0.6Mpa

Power Supply

220V/50Hz

Overall Dimension(L×W×H)

5000×680×1000mm

Weight

200Kg



Configuration:

1. Cup counting servo motor:YASKAWA(Japan)

2. PLC:                  Siemens or Panasonic(Germany and Japan)

3. Touch screen:          Weinview (Taiwan, China)

4. Solenoid valve:         SMC(Japan)

5. Relay:                 Omron(Japan)

6. Inductive switch:         Omron(Japan)

7. Other electrical equipment:Famous brand in China like CHINT(China) Plastic cup and paper Cup counting machine
