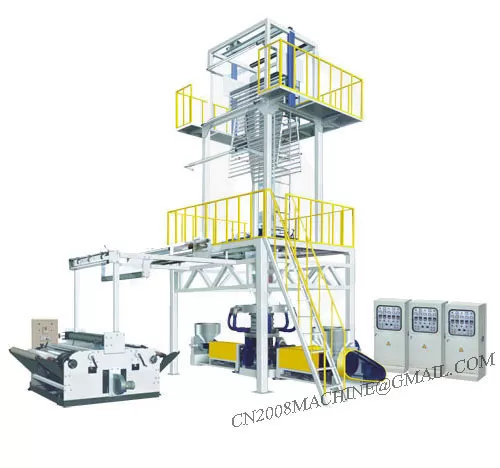

3SJ Series Three Layer Co-Extrusion Rotary Film Blowing Machine

Model No.

3SJ-50

3SJ-55

3SJ-60

Screw Diameter

55×2, 60×1

60×2, 65×1

65×2 , 70×1

Screw Ratio(L/D)

30:1

30:1

30:1

Max.Folding Width of Film

1000mm

1200mm

1500mm

Single Side Thickness of Film

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

Power of Main Motor

15Kw*2, 18.5Kw*1

18.5Kw*2, 22Kw*1

    22Kw*2 , 30Kw*1

Output

50kg/h

80kg/h

100kg/h

Weight of Machine

4200kg

5300kg

6200kg

Total Power

76kw

88KW

102kw

Dimension(mm)

6600x4100x5000

6800x4300x6000

7000x4600x7100
