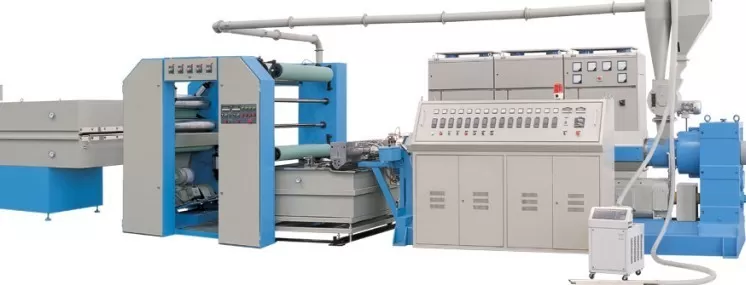

High Speed Flat Yarn Making Machine with Winder

Product Details:
Place of Origin: china
Brand Name: xh
Model Number: SJPL-Z120/30-1500/256
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD35000
Packaging Details: wooden box packing
Delivery Time: 30 days
Payment Terms: TT,L/C,and others
Supply Ability: 40 sets per month
Contact Now

Product Description

The stretching line is adopted micro-processor control, frequency conversion governor and setting and displaying technical data may be fully digitized on the basis of absorbing international advanced techniques. The main parts use quality products. The line enlarges L/D ratio and adopts new type of separating screw and widens mixing smelt zone on the extruder screw pot which is specially processed using quality steel, fine plasticized effect, low energy consumption in relation to output. For the change filter system of the flat film stretching line, we apply advanced automatic belt change filter. The bake-board is changed into advanced hot drawing oven and principal technical index of the line reaches international advancing level. The winding machine is of friction-free drive and constant tape tension wind, good formation quality of the fiber drum. The line has the performance of high speed, top yield, low energy consumption, good forming quality of the fiber drum. The structure of the line is compact with a pleasing appearance, smooth running, flexible and reliable control, sophisticated manufacture engineering, convenient operation and reliable production, it can be used in producing flat fiber form thermoplastic, such as polypropylene (PP) and high-density polyethylene (HDPE) etc.

The tape stretching line is consists of an extruder, a screen changer, a die, a water quench system, a film take-off and slitting film into tapes device, a traction system, a hot air oven, a stretching and annealing unit, a winding unit, edge tape and waste tapes reclaim system as well as electric c

Main Technical Parameter



Model

SJPL-Z120/30-1500/256

Max extrusion capacity

490kg/h

Driving power of extruder

160kw

Screw diameter

120mm

Ratio of L/D

30:1

Revolution of screw

20~120r/min

Die lip width

1500mm

Max. winding speed

280m/min

Flat thread fibre scope

60~200tex

Stretching ratio

4~10

System installed capacity

400kw

Normal operational capacity

About230kw

Weight

32000kg

Overall dimensions(L×W×H)

39000×3900×2600 mm
