Product Details:
|
|
Place of Origin: | china |
---|---|
Brand Name: | xh |
Model Number: | S-YZJ-850/6S |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | USD35000 |
Packaging Details: | wooden box packing |
Delivery Time: | 30 days |
Payment Terms: | TT,L/C,and others |
Supply Ability: | 40 sets per month |

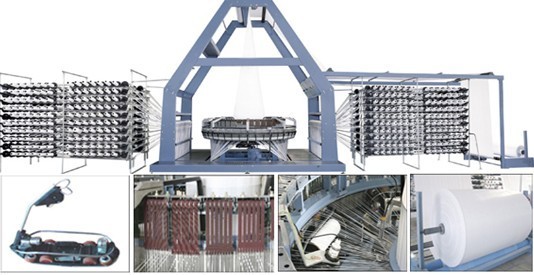

Product Description
1.The cam driving unit has been optimum designed and created to ensure long time running and less electrical and spare parts consumption.
2.World top advanced weft detecting system is extracted to increase to auto running and effective of the machine and also rejects can be reduced by the same.
3.Advanced weft detecting system is used to reduce the rejects and seconds.
4.Advanced synchronous electrical control system for main motor and hauling off unit is adopted to ensure the fine smooth and flat weaving performance.
Main Technical Parameters
Model |
S-YZJ-850/6S |
S-YZJ-1550/6S |
Number of shuttle |
6 pcs |
6 pcs |
Speed of main shaft (rpm) |
100-180r/min |
90-120r/min |
Production Capacity(10x10) |
1.8-2.55m/min |
1.3-1.8m/min |
Working width/double flat(mm) |
350~850mm |
950-1400mm |
Number of warp tape |
720 |
1280 |
Inside diameter and length of core |
Φ30~38×230mm |
Φ30~38×230mm |
Weft bobbin diameter |
Max.Φ115mm |
Max.Φ115mm |
Power of main motor |
3Kw |
5.5Kw |
Dimensions (L×W×H) |
9000x2410x3100(mm) |
13520x3300x4300(mm) |
Weight |
2000kg |
3800kg |
