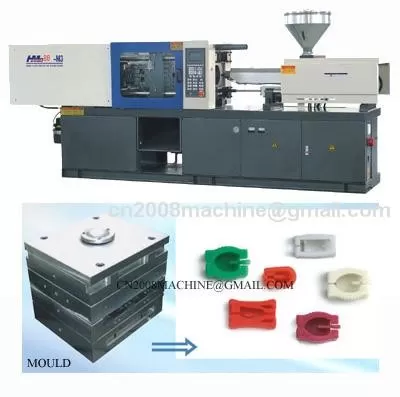

HMD Series Injection Moulding Machine

Model No.

Unit

HMD 88 M3

Intenational Size Rating

--

270/88

Injection

A

B

C

Shot Volume

cm3

120

163

220

Shot Weight (PS)

g

113

153

204

oz

4.0

5.4

7.2

Screw Diameter

mm

31

36

42

Injection Pressure

MPa

224

166

122

Screw L:D ratio

--

23:1

20:1

18:1

Screw Stroke

mm

160

Screw Speed(Stepless)

r/min

0 - 180

Clamping Unit

Clamping Force

KN

880

Opening Stroke

mm

320

Platen Size

mmxmm

540 X 490

Space Between Tie Bar

mmxmm

355 X 300

Max. Daylight

mm

640

Mold Thickness (Min-Max)

mm

130 - 320

Hydraulic Ejection Stroke

mm

80

Hydraulic Ejection Force

KN

28

Power Unit

Hydraulic System Pressure

MPa

14.5

Pump Motor

KW

9.5

Heating Capacity

KW

6.5

Number of Temp Control Zones

--

3 + nozzle

General

Dry-Cycle Time

sec

1.28
