Automatic Moving Video Web Inspection System for flexo printing machine camera

Product Details:
Place of Origin: ZHEJIANG,CHINA
Brand Name: XIAOHAI
Certification: CE ISO
Model Number: 4000M
Contact Now

Product Description

♦ Line motor-move traverse
♦ RGB/CMYK VALUE DETECT
♦ Image Rotate
♦ Image Patrol Shooting
♦ Image Split and Freeze
♦ Image Sharpen with Gamma
♦ Image Roll and Slow Shot
♦ Printing Speed & length measure
♦ Optical multiple & zoom Saving







 Design under ergonomics

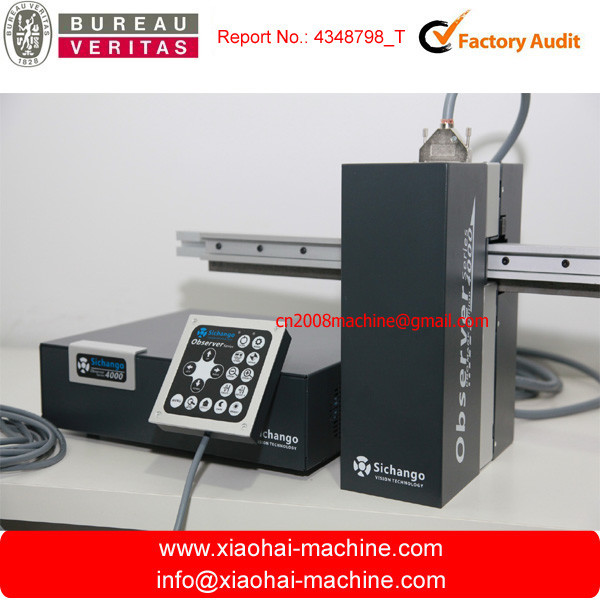

Observer series provide camera keyboard and remote keyboard for various rotary presses. Remote keyboard can be installed on camera unit, controller cabinet, or control panel of rotary press. Dual display is also provided. All these can make operation easier than before.



MOTOR DRIVE



It is suit for all kind of printing press with wide press material, or high position, and need camera to move frequently. Observer 4000M had been installed and applied on flexo and gravure press worldwide with hundreds sets.



CMOS high-speed industrial camera



Observer series is using high-speed CMOS industrial camera as the core unit with Sichango own intellectual property. It‘s small and stable with VLSI chip and provide clear, sharp and high-definition image.



Image patrol shooting



Observer 4000M (Motor drive) provides patrol shooting function which can shoot image while camera loops moving on traverse automatically to detect print quality easily. Traverse length up to 3 meters maximum.



Clear continuous 30X optical zoom



Observer series are all with 30X optical zoom. It providing fine adjustment from 1X to 64X with advanced digital image algorithms and give clearer image and detail than before.

Automatic Moving Video Web Inspection System for flexo printing machine camera



Simple and easy function for end user



It refine various functions on market and requirements from end users, providing most simple and practical functions in Observer series with new features as CMYK value detect, strobo life protect, auto scan and give end user more ROI in one time purchase.



CMYK value detect

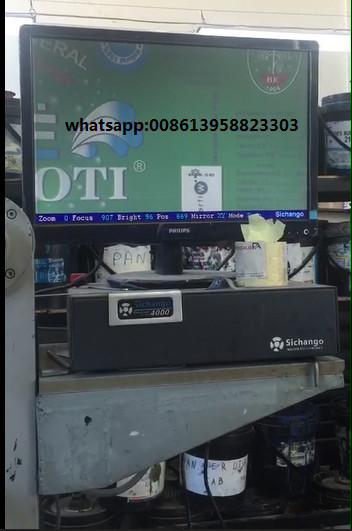

Observer series innovative integrating CMYK value detecting as standard function which can measure RGB and CMYK value and display on screen in real-time value and help user to find color change caused by ink consistency.

Automatic Moving Video Web Inspection System for flexo printing machine camera



Function in Detail Highest response in industry



Observer series provide sensitive features up to 10 pics shoot speed per sec and maximum 400m/min defect running speed beyond other systems on market.



Image freeze and rotate



Providing image freeze and free rotate by X, Y and XY axis. Camera unit can rotate with customer requirements to fulfill web inspection in different angle.



Image split



Image can be split by left freezing one with right updating one in real time to help user to contrast printing result.

Automatic Moving Video Web Inspection System for flexo printing machine camera



We introducing Gamma correct in image process to adjust color display in different monitor effectively, especially when printing business forms.



For all type rotary press



Observer series can fit for various of rotary press such as drum press,combination rotary press and gravure rotary press, etc.





Specification:



OBSERVER

4000M

COSMOS SENSOR

2M pixels

OUT PUT RESOLOUTION

1280x1024 pixels

IMAGE VIEW

90mmX67,5mm

MAX OPTICAL ZOOM

30X

MAX. SHOOT SPEED

10pics/sec

MAX RUNING SPEED

400m/sec

MOTORIZED

+

CAMERA MOVE SPEED

52mm/sec

VOLTAGE

110V-240V, 50-60hz

HUMIDTY

20%-80%

SIZE (LxWxH)

110x238x290mm

WEGHT

CAMERA

CONTROLLER

9

3

6

Printing Registration inspection

+

Printing Quality inspection

+
