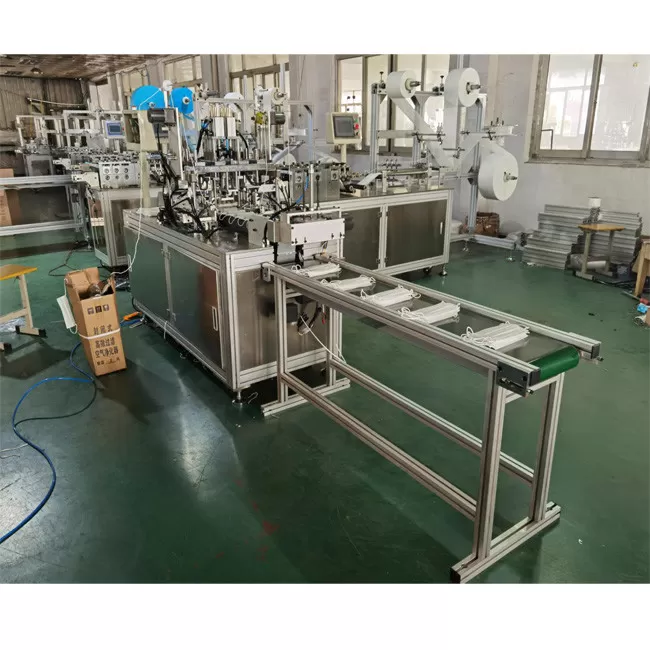

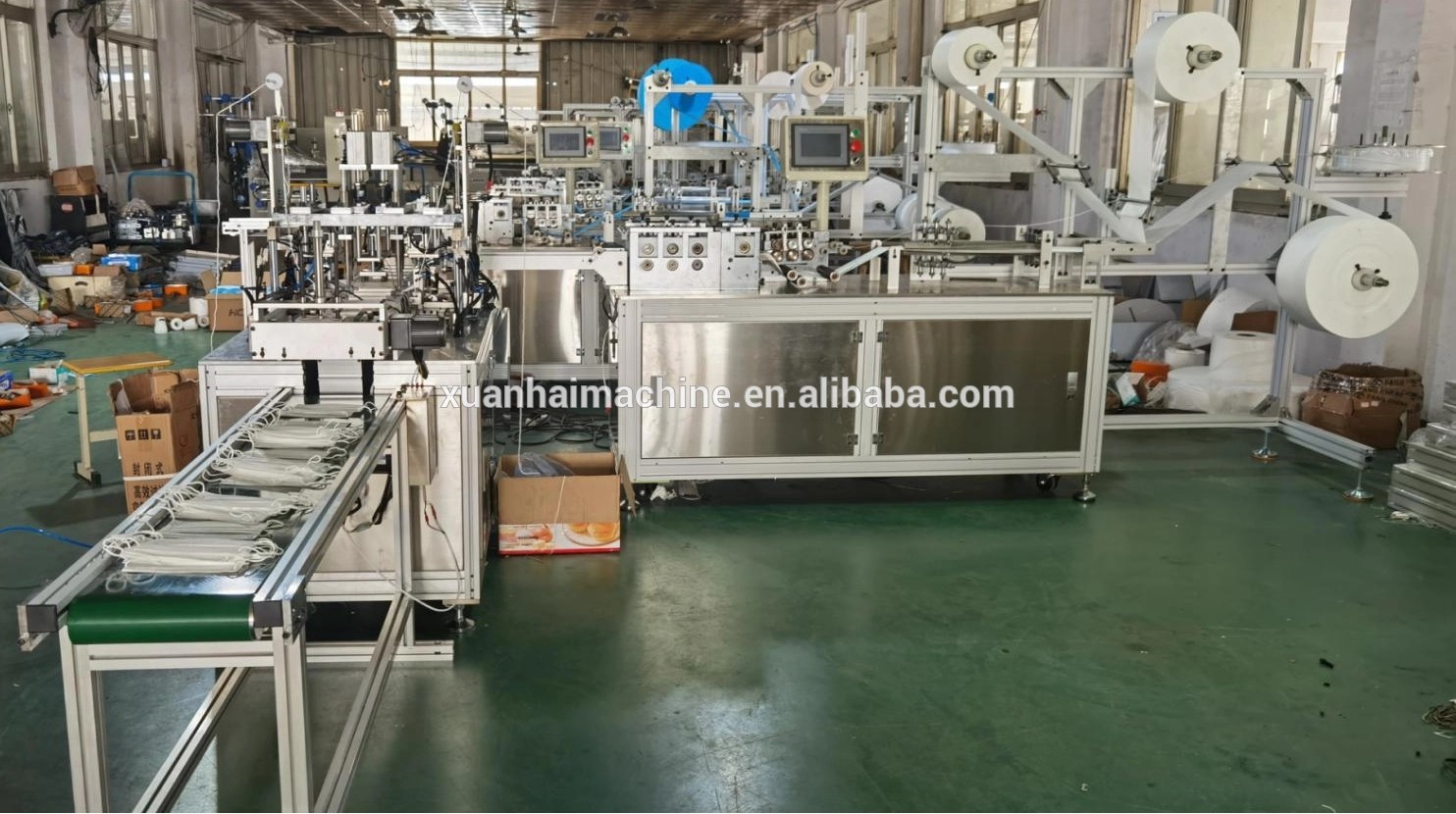

2020 90pcs/min Servo control 1+1 Automatic non woven surgical Disposable face mask making machine

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Payment & Shipping Terms:
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.

Product Description

Technical characteristics :
1. Threerollsof fabric are automatically aligned and fed,and bilateral symmetrical ultrasonic continuous blanking;
2. Thenoseclip are automatically cut and welded by ultrasonic.
3. The ear loop are automatically welding by ultrasonic.

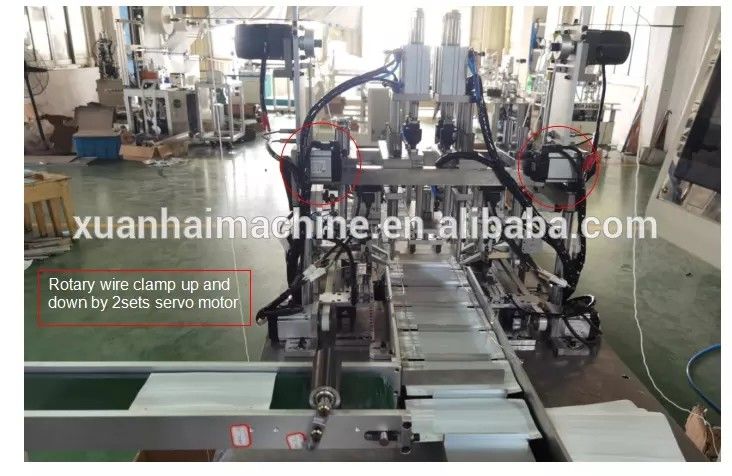

4. The machine adopt 9sets servo motor to control machine,highproductionefficiency.
The machine can make the 1--4 levels mask blank according for the customer's require with a high output; You can adjust the size of the mask blank and the folding location; The direction of the earloop is outside; Compared with sub-mask production equipment, this set of equipment more efficient, more econo mical artificial; The computer program control and photoelectric detection make it have a high reliability and low failure rate;
Equipment structure
Blank sheet machine
with ear-loop welding unit
Applicable material
non-woven fabric, synthetic fiber
Applicable layer
3 layers/ply
Drive mode
9 sets servo motor
Machine Size
4600 x2600 x2100mm
Total power
10.4kw, 220v single phase 50hz
Finished product dimension
175 ×95mm
Processing method
ultrasonic welding
Control mode
Motion controller
Air pressure
Machine Weight
Product Type
Disposable 3 lays Surgical Medical Face Mask
Mask Size
Dark Color SS Non Woven Fabric– for Outer Surface Layer
25gsm,200mm width
White Color Meltblown -Filter Layer
22gsm,175mm width
Light/White Color SS Non Woven Fabric - for Inner Layer
20gsm/25gsm, 175mm width
Nose Clip
Plastics/Iron Material
Ear Loop
3mm diameter Chinlon Fabric


2020 90pcs/min Servo control 1+1 Automatic non woven surgical Disposable face mask making machine
