BSY-B Series Eight Color Computer Control High Speed(120m、Min)Rotogravure Printing Machine

Contact Now

Product Description

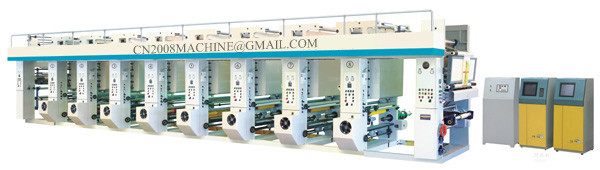

BSY-B Series Eight Color Computer Control High Speed(120m、Min)Rotogravure Printing Machine

Usage:
This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.

Performance and Features?
1.Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.
2.Main motor equipped with frequency converter for speed regulation
3.Unwinding tension adopts automatic tension controller and magnetic powder brake.
4.Rewinding adopts torque motor, double-station automatic turret.
5.Closed oven and independent heating hot air blowing system, automatic constant temperature system.
6.Pneumatic impressing system and pneumatic doctor blade system
7.Diaphragm-type pneumatic ink auto circulating system
8.Inflatable loading and unloading shaft
9.Printing linear speed and meter counting display
10.Shaft less printing cylinder loading device (Option:Shaft printing loading device)
11.Option: web video

Specification:

Model No.

GWASY-8800

GWASY-81000

Effective Printing Width

800mm

1000mm

Max.Printing Speed

120m/min

120m/min

Max.Mechanical Speed

140m/min

140m/min

Max.Diameter of Unwind/Rewind

600mm

600mm

Inside Diameter of Roll Core

76mm

76mm

Diameter of Printing Cylinder

120??300mm

120??300mm

Accuracy of Computer Registration

±0.2mm

±0.2mm

Tension Control Range

0~25kg/Full Width

0~25kg/Full Width

Heating Power of Oven

124kw

144Kw

Total Power

140kw

161Kw

Weight of Machine

20000kg

25000kg

Machine Dimension(mm)

16300x3400x3100

16300x4000x3100
