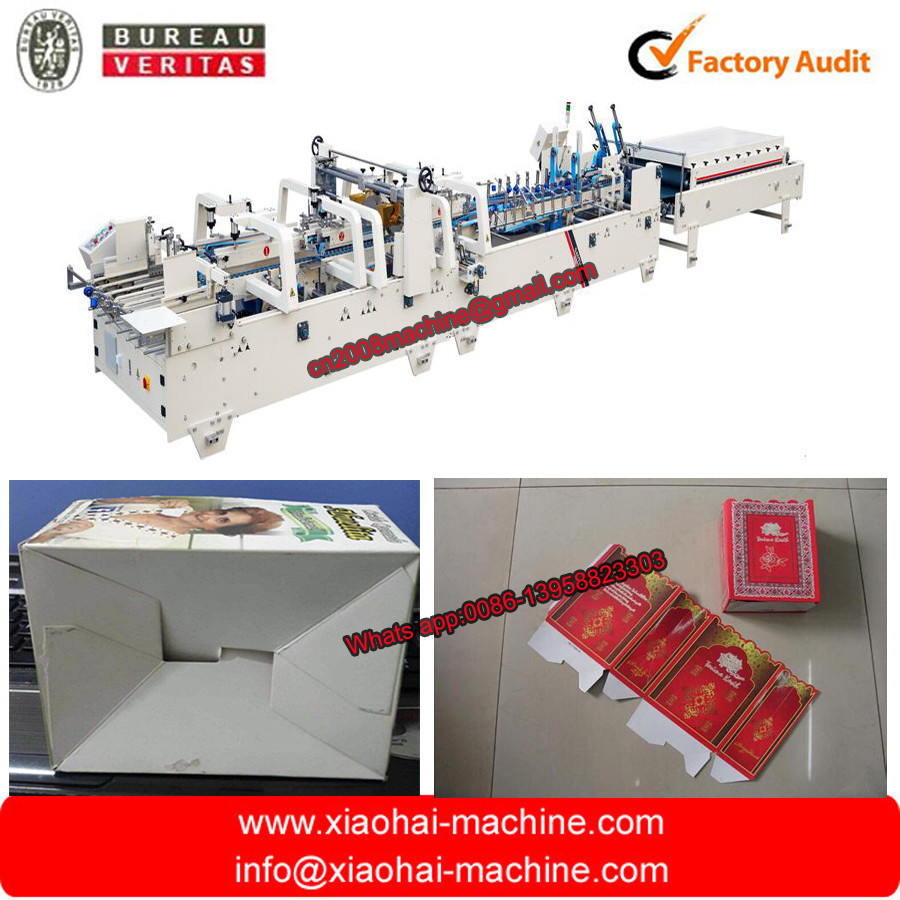

Automatic Corrugated paper folder gluer with Pre-fold and crash lock bottom

Product Description

1.Characteristics:

It is a new economical High speed and crash lock bottom automatic folder gluer .The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. It is more economical, more practical models. Professional for the wine box , gluing side keep straight no inclined , sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom . Also be used for various types of crash lock bottom boxes, medicine boxes, and cosmetic boxes and do simple box.

2.Main technical parameter:

Used material : Carton board B , C , E , F flute and print board .

Paper weight : 200 ~ 700gsm ( according to the paper width )

Power capacity:  11KW  380V  50HZ

Overall size (mm): 11000 x1450 (1650)(1850)(2100)x 1400

Weight (kg): 2800 (3200)(3600)(4200)

Machine speed: 0~220M/min

3. Paste box size
