Plastic Coffee Bag Making Machine with central sealing Line and three side sealing

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Payment & Shipping Terms:
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Product Description

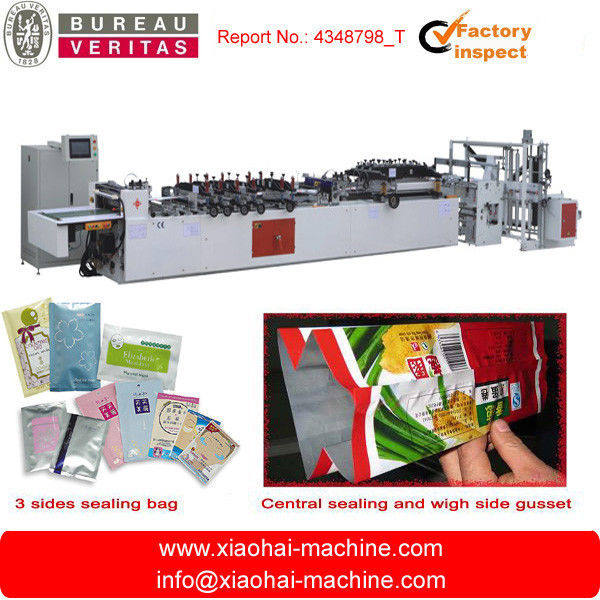

Plastic Coffee Bag Making Machine with central sealing Line and Three Side Sealing

1) Bag making function: three side sealing bag,central sealing bag with side gusset,

2) Main electric scheme: double servo motor for traction, with PLC used panasonic from Japn., Touch Screen from Taiwan; main driving is alternating current with  yaskawa from JAPAN Transducer, automatic constant tension for unwinding.

3) Suitable material: this machine is suitable for producing multi-layer three side sealing laminated film,

plating ALU laminated film, paper-plastic laminated film, pure-ALU laminated film which takes BOPP, PET, CPP,ALU, and Nylon etc plastic laminated film as base material.

4) The speed of machine: 150 hypo-minute

5) The speed of feeding: ≤35 m/min (decided according the material)

6) The length of bag making: 380mm X ......, excess this data adopts skip material feeding (Max. skip material feeding is 6)

Max, width: 380mm   ( after fold size of raw material-)

7) The dimension of roll material:ф600*800mm (diameter* web-width)

8) Accuracy of orientation: ≤± 0.5mm

9) Thermal-sealing knife’s quantity of heat:

1. Vertical-sealing adopts 3 groups for heating fluctuation, cooling fluctuation from up and down..

2.   centra-sealing adopts 2 groups for level

3. bottom sealing adopt  3 groups heating fluctuation, 1 group for cooling fluctuation.

10) The quantity of temperature heating: 16 groups

11) The bound of temperature: 0-300 ℃

12) Total power: 30kw

13) Overall Dimension: (L*W*H) 9000X1750X1700

14) Weight of machine: about 3500kg

Plastic Coffee Bag Making Machine with central sealing Line and three side sealing
