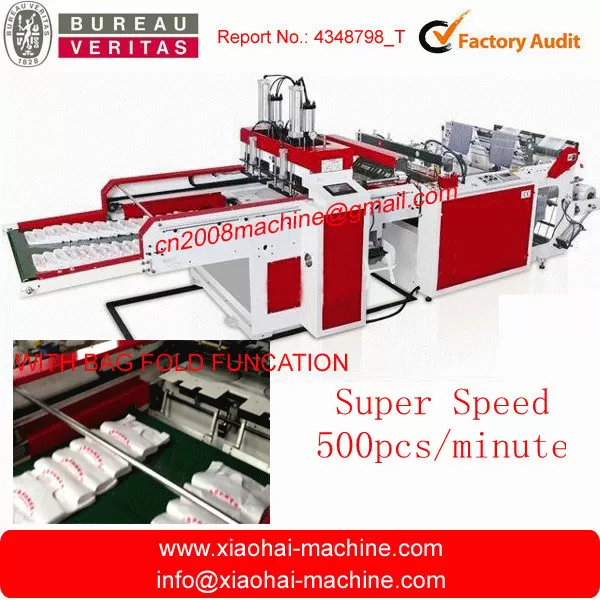

Double Servos Two Lines Full automatic T-shirt bag making machine

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Model Number: HDZC 400X2
Payment & Shipping Terms:
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Detail Information

Video Link: Http://

Product Description


1.This machine is special for making unprinted or printed T-shirt bag.The machine finish the feeding, sealing, cutting, punching and transporting only in one process.

2.This machine is equipped with computer to set the bag length and batch make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag if you want to save labor.

Double Servos Two Lines Full automatic T-shirt bag making machine

watch video link:

· Bag Type: T-shirt Bag,supermarket bag, Vest bag

· Material: HDPE,LDPE

· Computerized: Yes,Yes with servo motor system

· Certification: CE & SGS

· Warranty: 1 YEAR

· After-sales Service Provided: Engineers available to service machinery overseas

· Speed: 200-250 pcs/ min x2 lines

· Steel thickness: 16mm

· Automatic: Yes

· Color: Dark blue and Light blue (Customized)

· Port: Ningbo,China

· Deliver day: 25-30 days

· Place of Origin: Ruian,Wenzhou City,Zhejiang, China (Mainland)




Max bag making width: 200-400mm x 2 lines

Max bag making length: 350-650 mm x2 lines

Bag making thickness: 0.01-0.05mm/ per layer

Bag making speed: 200-250pcs/min x 2 lines

Feeding speed: 80m/min

Air pressure: 7.5hp

Main power: 8.5kw

Weight: 2400 kg

Overall dimension (LXWXH): 7000X1550X1700 mm


Configeration are imported:

1. feeding material by servo motor 3kw used YASKAWA from Japan

2. Pressure cylinders from the machine use from Taiwan

3. Automatic punch hydraulic system from Taiwan
