plastic lollipop stick making machine for candy,cotton swab

Product Description

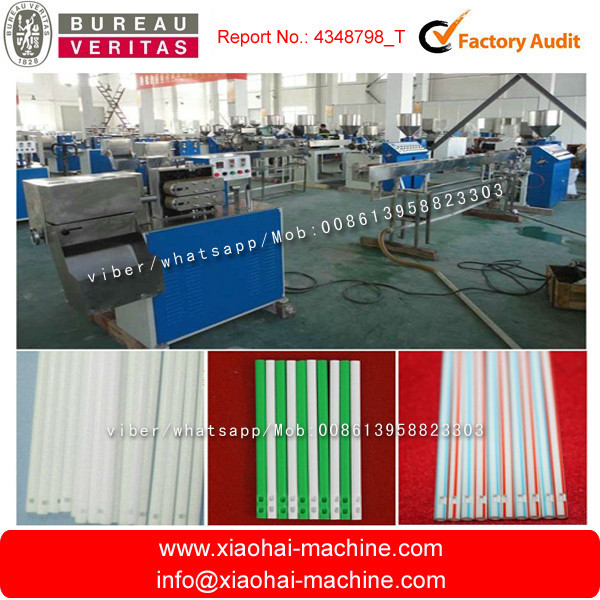

The machine makes straight straw from pp. It is composed of extruder and die, cooling unit, vacuum calibration, haul-off and rotary cutter. All the machine's controls based with the control elements are ergonomically adapted to permit easy operation. The machine is suitable for extruding straws, sign pen leads, refill tubes and most small diameter tubing and a wide range of industrial applications.

Range of application:

Food industry : drinking straw , candy stick , coffee stick,cotton bud stick,lollipop stick.etc

Other industrial fileds : pen refill , medical pipe , small diameter tube .etc
Main composed:

Part 1: Screw sending machine (stretching part)

Main screw size :50mm,L/D: 26:1 1Set

Motor power: 11kw by inverter control

Heat power: 14kw

Machine size: 2.5*1.2*1.3m

Part 2: Cool water tank (cooling part)

Water tank length: 3.5m

Size:6.5*0.6*1.1m

Part 3: Taking up and cutting machine (cutter part)

Motor power: 2*0.75kw by inverter control

Machine size : 1.4*0.7*1.2m

Part 4: gathering machine

Size :2.0*0.5*1.5M

TOTAL LAND NEED SIZE: 15M length X 2M width X 2M height

Features:
Materials: PP, PE
Diameter (mm): 2 – 12mm(the diameter of tube within 12 mm that all can be make by change mould)

Length (mm): 5 - 1,000 (can be adjust)
Production capacity: 20 --- 25kg/h

Line speed: max. 250m/min

Sample: single color (one color)
