plastic Drinking Straw mouth sharping machine (the tip direction is the same)

Product Details:
Place of Origin: zhejiang , China (Mainland)
Brand Name: XIAOHAI
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: seaworthy package
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Contact Now

Product Description

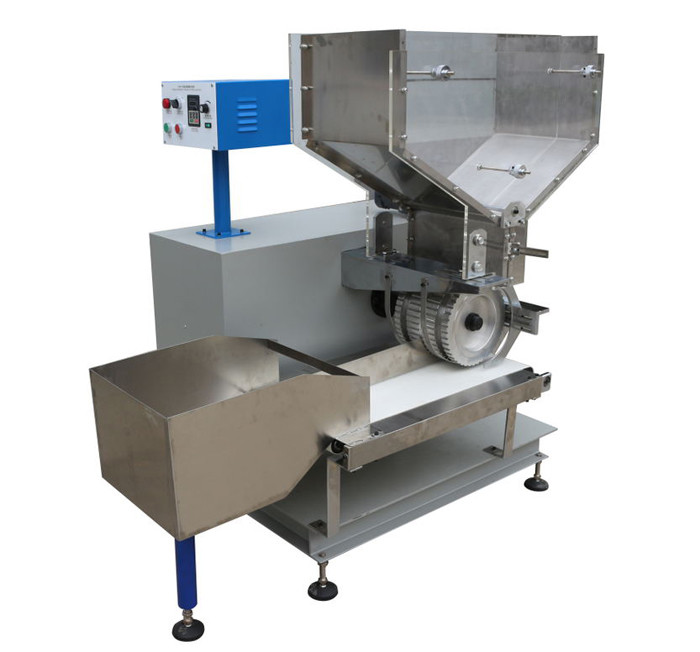

This machine is an auxiliary equipment of straight pipe machine. This machine consists of drive motor, blanking device, pipe cutting device, belt conveying device and receiving hopper. This machine has a high degree of automation. Generally, one person can operate two types of equipment, and the machine is easy to operate and reliable in quality. This machine is the auxiliary equipment of straight pipe machine; the main function is to straighten the straight pipe made by the straight pipe machine into two, which can ensure that the direction of the pointed straight pipe is the same and automatically manage the pipe, which is convenient for the next process and the blade is flat Without any burrs, it solves the disadvantages of the old cutting machine when the sharp-pointed pipe is inconsistent and difficult to organize, especially the sharp-edged pipe with a pipe length less than 110mm. This machine is more practical, saves labor, and can save 3-4 people.
◆ Greatly save labor and personnel labor intensity.
◆ The quality of the cut straw is reliable, without any burrs, and the blade is flat, and the length error is within 1mm.
◆ High working efficiency, can cut 500 tubes / minute.

Technical Parameters:

Host motor 0.4kw inverter speed 220V
Cutting tube length 160 ~ 420mm (straight tube blank)
Production capacity: 500 pcs / min
Tube length error ± 1mm
Management method Automatic management, the direction of the tip is exactly the same

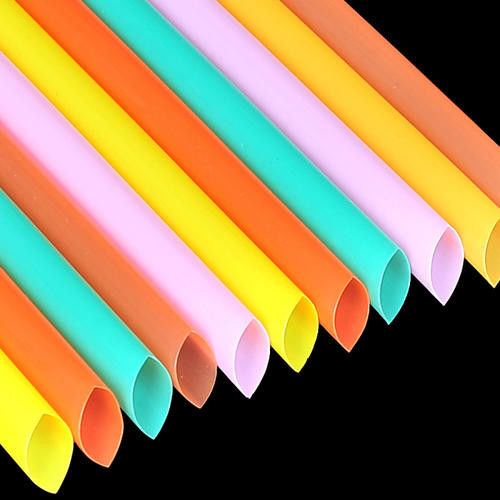

Straw specifications Pipe diameter: ф2 to ф12mm Length: 80 to 210mm (finished product)
Machine size 1800 × 800 × 1400m
Machine weight 300kg

plastic Drinking Straw mouth sharping machine (the tip direction is the same)
