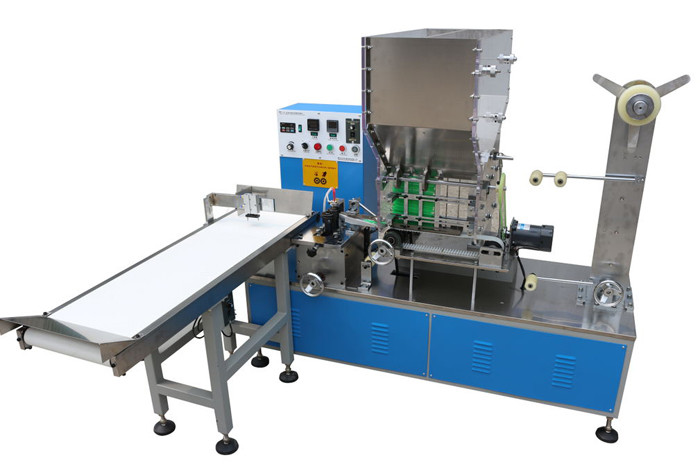

super high speed single drinking straw wrapping machine without printing funcation for paper or plastic bopp film both

Product Details:
Place of Origin: zhejiang , China (Mainland)
Brand Name: XIAOHAI
Certification: CE
Model Number: DB-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: seaworthy package
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Contact Now

Detail Information

Condition: New Voltage: 220v,50HZ
Power(W): 0.75kw Dimension(L*W*H): 1.7xo.6x1.3m
Weight: 400kgs Warranty: One Year

Product Description

Usage:
1.The machine is to pack the single straw.It can be used paper or film to packing straight straw.flexible straw.spoon straw.milk tea straw,The machine provides a high packing rate. It not only makes your straw packing operation easier,but also provides you with a high reliability.



2.This machine is a full automatic for packing single-straw into package machine. The machine is composed of motor, film or paper supporting assembly(choose one),straw feeding section, sealing section, coiling section and electronic controlled system etc.The main drum always carrying a lot of straws in successive different operations. This provides a high packing rate, and incorporates an automatic. To complete filling in & packing at a time.



3.Highlight:



1. Single drinking straw packing,filling&packing,cutting at a time
2. super speed 600pcs/minute for film.
3. Automatic product counting,product quantity per-set. Once the pre-set figure is reached, the machine will stop and an alarm will sound
4. Packing speed can be adjusted freely





Motor 0.75kw
Speed

500pcs/min (paper wrapping)

400~600pcs/minute(film wrapping)

Packing type Three side sealing
Packing material Opp,paper
Straw size diameter Φ5~Φ13mm
length 140~260mm
Machine size/weight 1500 × 800×1500mm 300kg



Sample:

super high speed single drinking straw wrapping machine without printing funcation for paper or plastic bopp film both
