Full automatic artistic drinking straw making machine

Product Details:
Place of Origin: Made in china
Brand Name: xiao hai
Certification: CE
Model Number: WG-Z
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: according to the machine,10-30 days.
Payment Terms: 30% downpayment and pay the balance before shipment afer test the machine in our factory.
Contact Now

Product Description

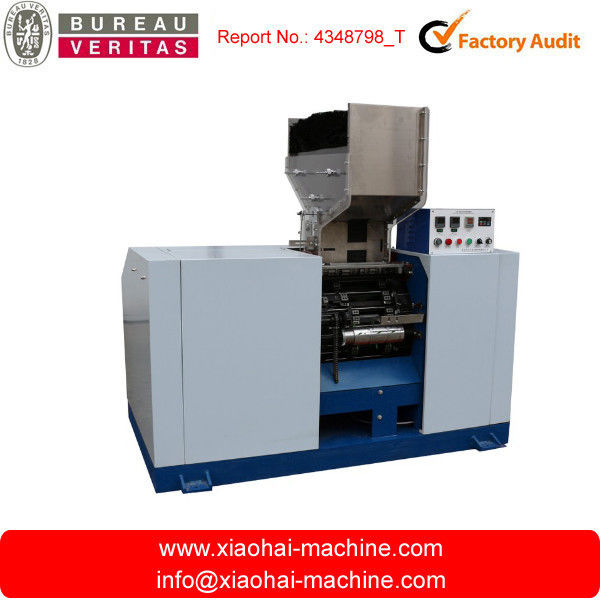

WG-Z Series Automatic artistic straw molding machine is a bendable straw processing equipment. The entire device from input to finished product output fully automaticly, simply add artificial straight tube blank. Polypropylene straight pipe joined by forming on the top of the hopper, relying on two clamping manipulator, a master device back to back wheel. Rotating the main dial back, so that the straw through two rotatable pressure roller indentation formed on the straw. And then by the two robotic be compressed, so that was the indentation folds contraction shape the final product is automatically transported out. Main Circle usually carries 18 straws continuously run, the product has a high-speed production capacity.

Features:



◆ mold can be heated, high production efficiency.



◆ has a production counting function.



◆ automatic counting, the specified batch alarms, easy manual bagging.



◆ with automatic fault stop function.



Motor

1.5kw inverter ( 380V 3phase)

Working speed

150--200pcs/minute









Straw size

   Inner diameter

Ф5.6mm±0.05mm

Wall thickness(single side)



0.15~0.17mm

Straw length before bending



320mm~350mm

Bending part length



260mm~290mm

Other sizes can be custom made      58teeth~60teeth

Machine size

1700mm*1300mm*1700mm

Machine weight



1000kg



Full automatic artistic drinking straw making machine
