Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Xiaohai |
| Model Number: | 450A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Delivery Time: | according to the machine,10-30 days. |
| Payment Terms: | 30% downpayment and pay the balance before shipment afer test the machine in our factory. |
Product Description

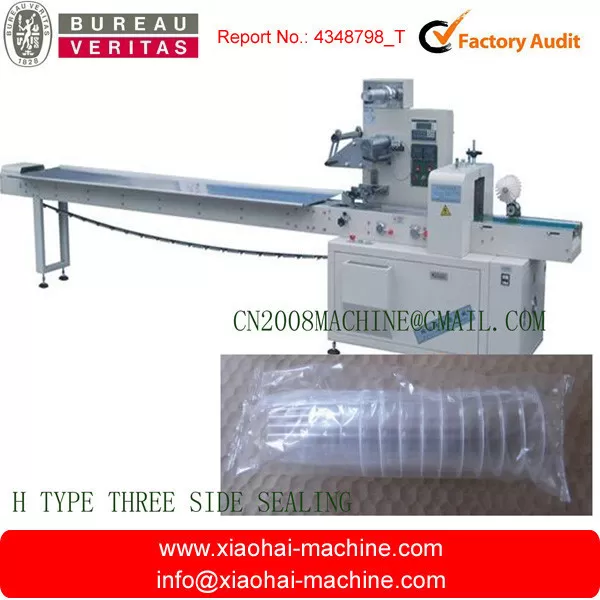

Full automatic plastic cup packing machine
Main Feature:
1. This machine is equipped with PLC control system, with function of stacking, counting, bag/film sealing & cutting. (Auxiliary machine such as labeling machine and date coder machine can be added. )
2. The main parts used in this machine, that is pneumatic element, PLC and frequency inverter, are of high quality from renowned brand.
3. This machine is featured by stable and easy operation, double frequency inverter control, bag length cutting at random, and temperature control by PID, thus convenient for all kinds of material bag/film.
4. The cup counter has double servo motor, double way counting, ensuring higher output.
5. Production speed is adjustable, and the cup counting range covers 1-100 pcs, aiming to achieve the best packing effects.
Main technical parameters:
|
Max. Film width |
450mm |
|
Max. Packing capacity (According to the material and the number of cups) |
10-100ps/min |
|
Suitable film thickness |
0.03-0.06mm |
|
Length of bags |
100-550mm (Made as per customer's demand) |
|
Packing width |
50-160mm |
|
Packing height |
≤100mm |
|
Total power |
3.5KW 220V |
|
Overall dimensions(L×W×H) |
7000×900×1600mm |
|
Weight |
1200kg |
